Basket size; - 450 x 450mm 14 plate capacity with a load height of 300mm
Output - Upto 40 baskets/hour
Operation;
Electronic controls with colour code switch
Choice of 4 washing cycles - Light (1.5 mins), STD ( 2 minutes), Heavy (3 mins) Intense (9 mins) -
Wash programs times can be adjusted to meet customer requirements
Forced drain function - this can be set to inform the operator when the water in the wash tank needs to be drained and refilled so always washing with clean water - ideal for heavy use sites
Cleaning function - at the end of the day an automatic cleaning cycle of the wash tanks takes place
Green function - puts the machine into standby when not being used
Water consumption per wash is 2 litres
Tank capacity = 18 litres with rinse boiler capacity of 5 litres
Fitted with thermostop - this only allows the machine to operate when the rinse and wash temperature are reached - this guarantees hygienic washing
Hot rinse
Cold water feed (between 10 & 50ºC) with a supply pressure between 2 and 5 bar
Standard features;
Electric Detergent & Rinse aid pumps
Drain pump fitted as standard

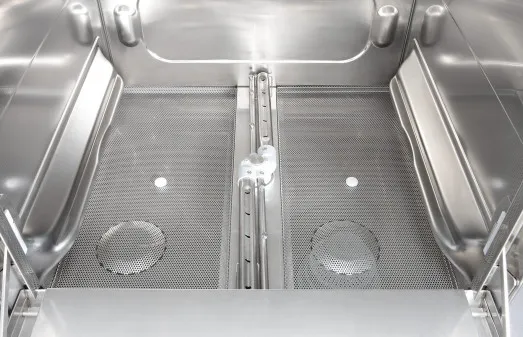

Removable primary surface tank filters - collects larger items (forks, spoons etc) preventing them entering the wash tank
Plastic wash pump filter, protects the pump from risk of blockage - removable for cleaning
Front control panel slides out to allow easy access for maintenance
Component diagnosis - the engineer can test if all components are working correctly so reducing repair times
WRAS approved - Inbuilt break tank with rinse booster pump
Automatic end of day self cleaning of water tank
Soft start operation of wash pumps - increases pump life
Removable stainless steel wash and rinse arms to top and bottom
Automatic filling
Door microswitch - stops wash arms rotating when door is opened
Anti back flow valve
Component diagnosis function - a service engineer can check which components need attention
304 Stainless steel Double skinned wash tank & door - reduces noise level and saves energy by reducing heat loss
316 Marine grade stainless steel boiler
Stainless steel wash and rinse arms - do not get brittle and crack like plastic ones
Preformed basket runners allow easy cleaning of the interior
