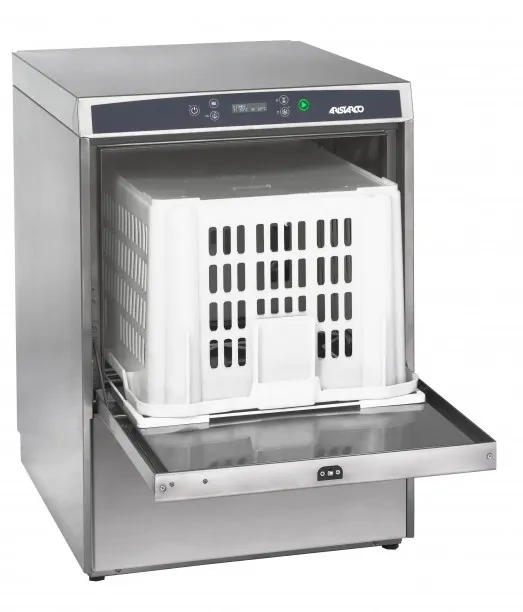

Basket size; - 600 x 500mm with a load height of 400mm - will take 600 x 400 x trays
Output - Upto 40 baskets/hour
Operation;
Electronic controls with colour code switch
Choice of 4 washing cycles - Light (1.5 mins), STD ( 2 minutes), Heavy (3 mins) Intense (9 mins) - wash programmes can be adjusted to meet customer requirements
Cleaning function - at the end of the day an automatic cleaning cycle of the wash tanks takes place
Water consumption per wash is 2 litres
Tank capacity = 22 litres with rinse boiler capacity of 5 litres
Fitted with thermostop - this only allows the machine to operate when the rinse and wash temperature are reached - this guarantees hygienic washing
Hot rinse
Cold water feed (between 10 & 50ºC) with a supply pressure between 2 and 5 bar
Standard features;
Electric Detergent & Rinse aid pumps fitted
Inbuilt water softener
Drain pump fitted (maximum exit height of 800mm)
WRAS compliant - Inbuit break tank with rinse booster pump
Automatic end of day self cleaning of water tank
Soft start operation of wash pumps - increases pump life
Removable stainless steel wash and rinse arms to top and bottom
Automatic filling
Door microswitch - stops wash arms rotating when door is opened
Anti back flow valve
Component diagnosis function - a service engineer can check which components need attention
Construction;
Double skinned body - reduces noise level and saves energy by reducing heat loss
304 stainless steel body
Radiused Preformed wash tank and basket runners for easy cleaning
Removable primary surface tank filters - collects larger items (forks, spoons etc) preventing them entering the wash tank
Plastic wash pump filter, protects the pump from risk of blockage - removable for cleaning
Stainless steel wash and rinse arms - do not get brittle and crack like plastic ones
Accessories supplied;
1 x basket 600 x 500mm

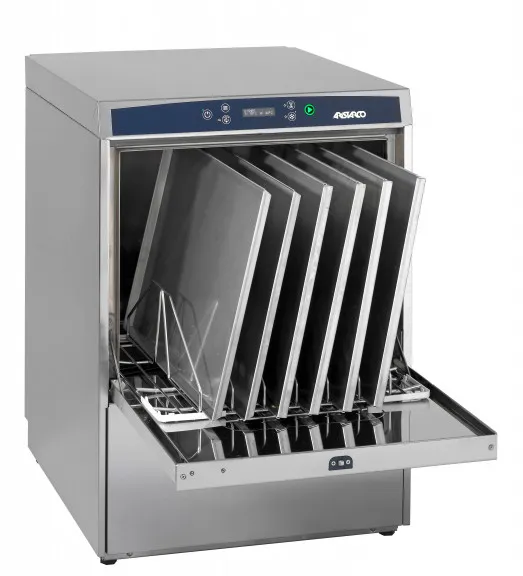

1 x Stainless steel tray rack for 4 dough trays
1 x Water inlet hose - 2 mtrs
1 x Drain hose - 2.5 mtrs
