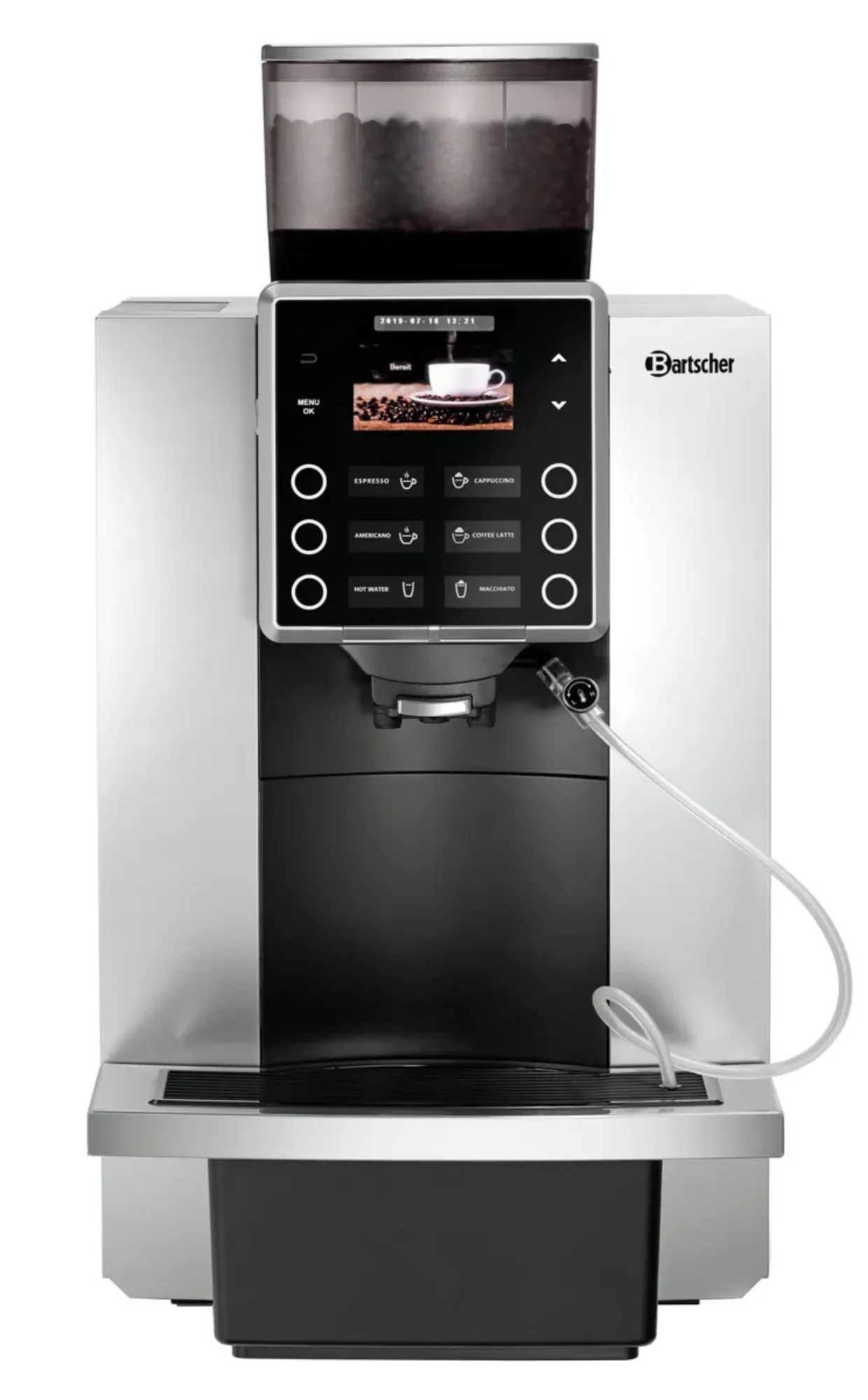

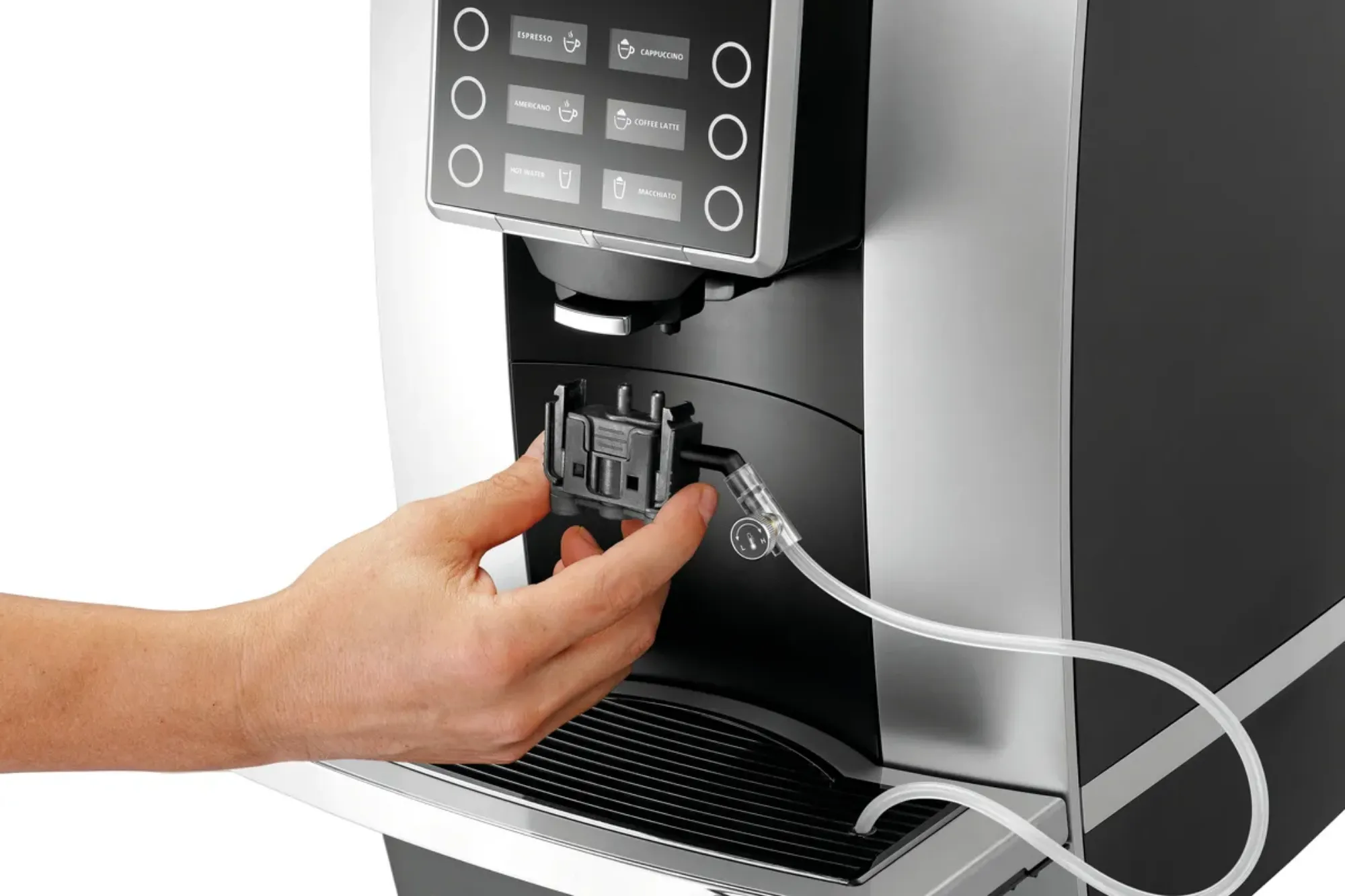

Bartscher Automatic coffee machine KV1 Classic

Colour : Black / silver

Brewing group(s) : 1

Minimum brewing quantity : 25 ml

Designed for : 80 cups / day

Output max. : 40 cups à 120 ml / hour

Warm-keeping function : no

Decalcification signal : yes

Filling level display : yes

Control unit : Electronic

Setting possibilities : 5 grinding levels

Coffee dosing

Water quantity

Water temperature

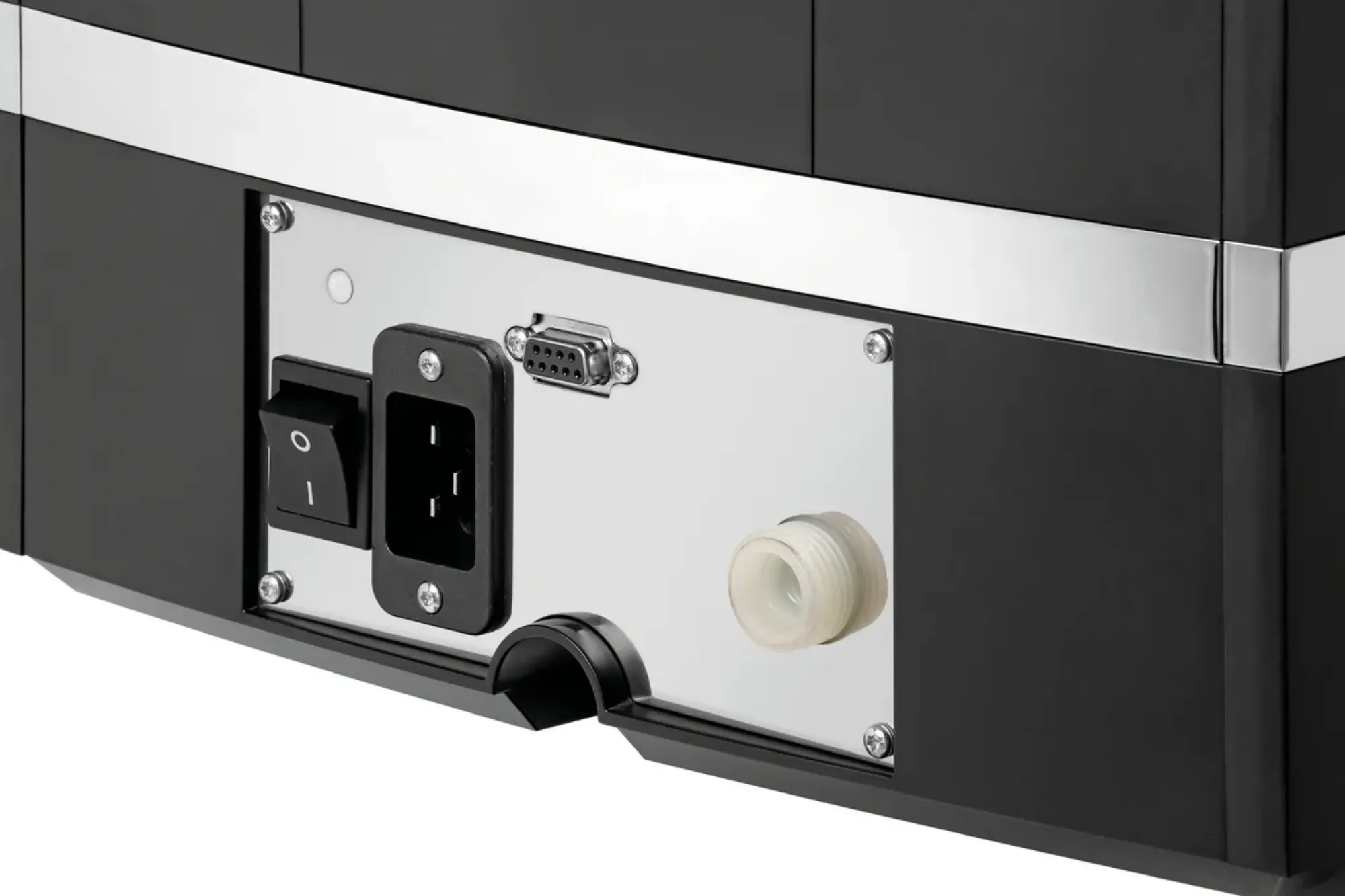

Water connection : Fixed connection to water supply 1/2"

Water tank capacity : 1.8  litre(s)

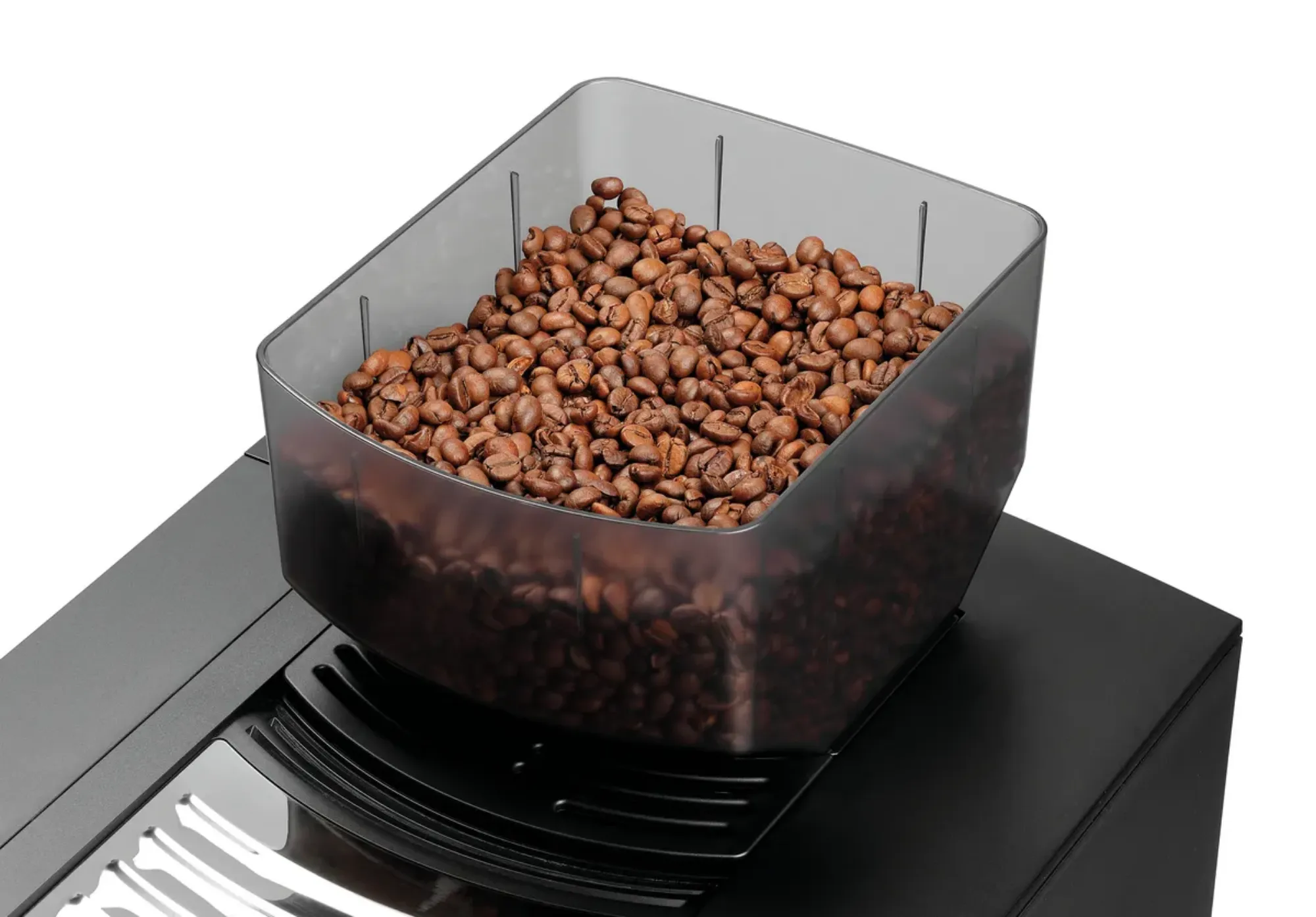

Content bean container : 1000  g

Water supply : 2 options

Water tank

Fixed connection to water supply

Detachable water tank : yes

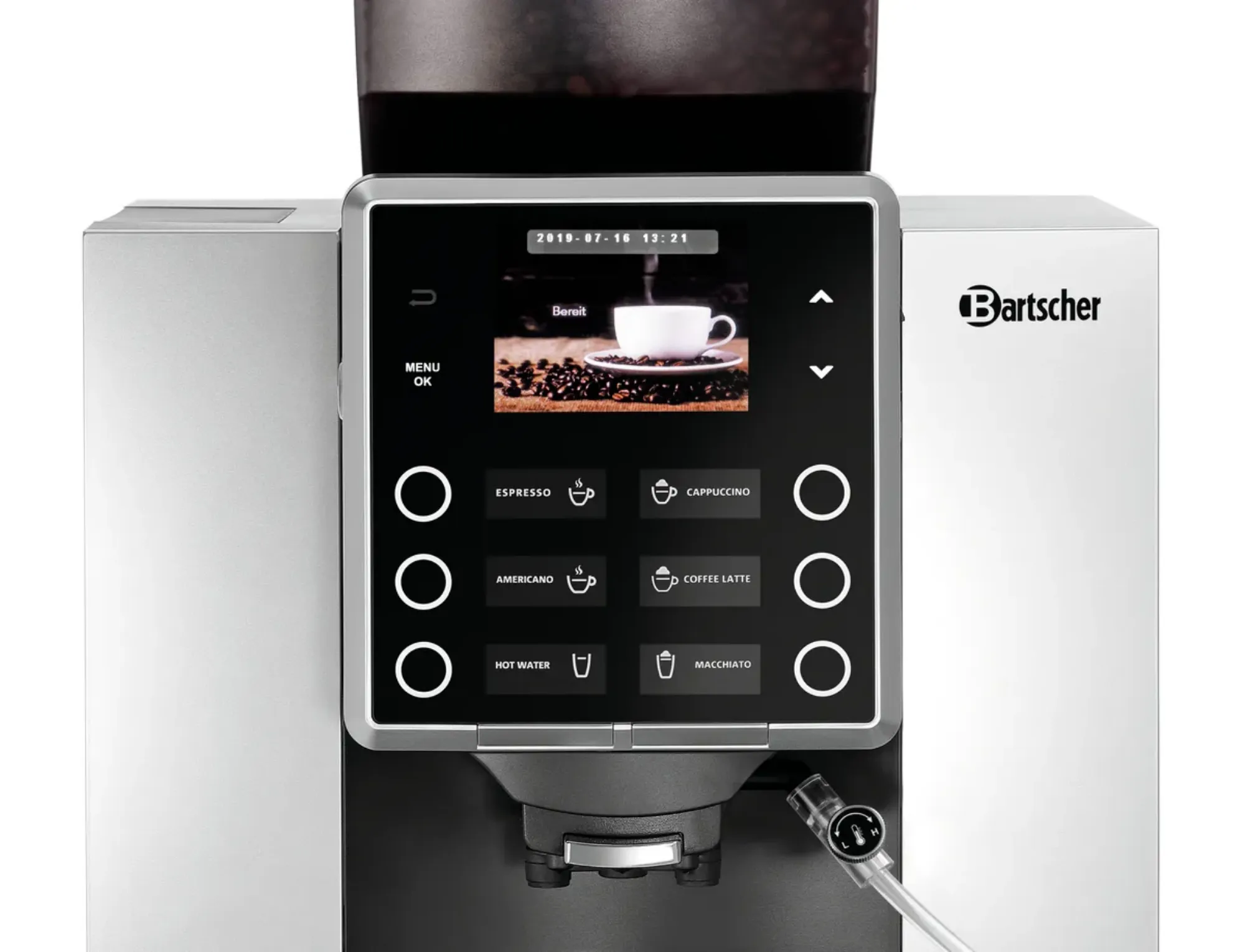

Programs : 6, individually adjustable

Display : Fault messages

Programs

Status

Maintenance info

Automatic turn-off : yes

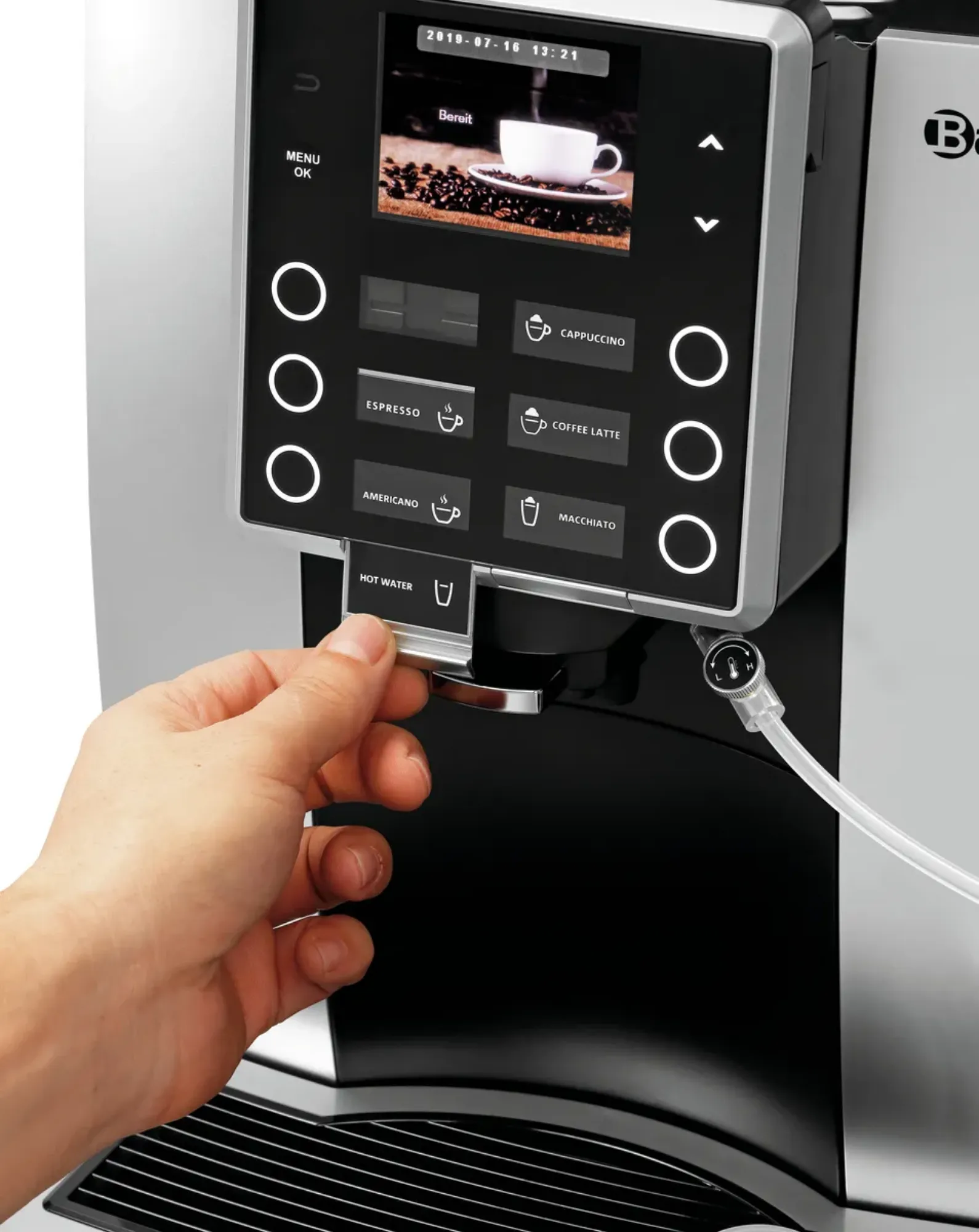

Hot water function : yes

Milk supply : External via tube

Flow rate can be regulated (temperature regulation)

Grinding mechanism : Cone grinder

Grinder material : Steel

Pressure system : Piston pressure

Pump pressure : 19  bar

Milk frother : yes

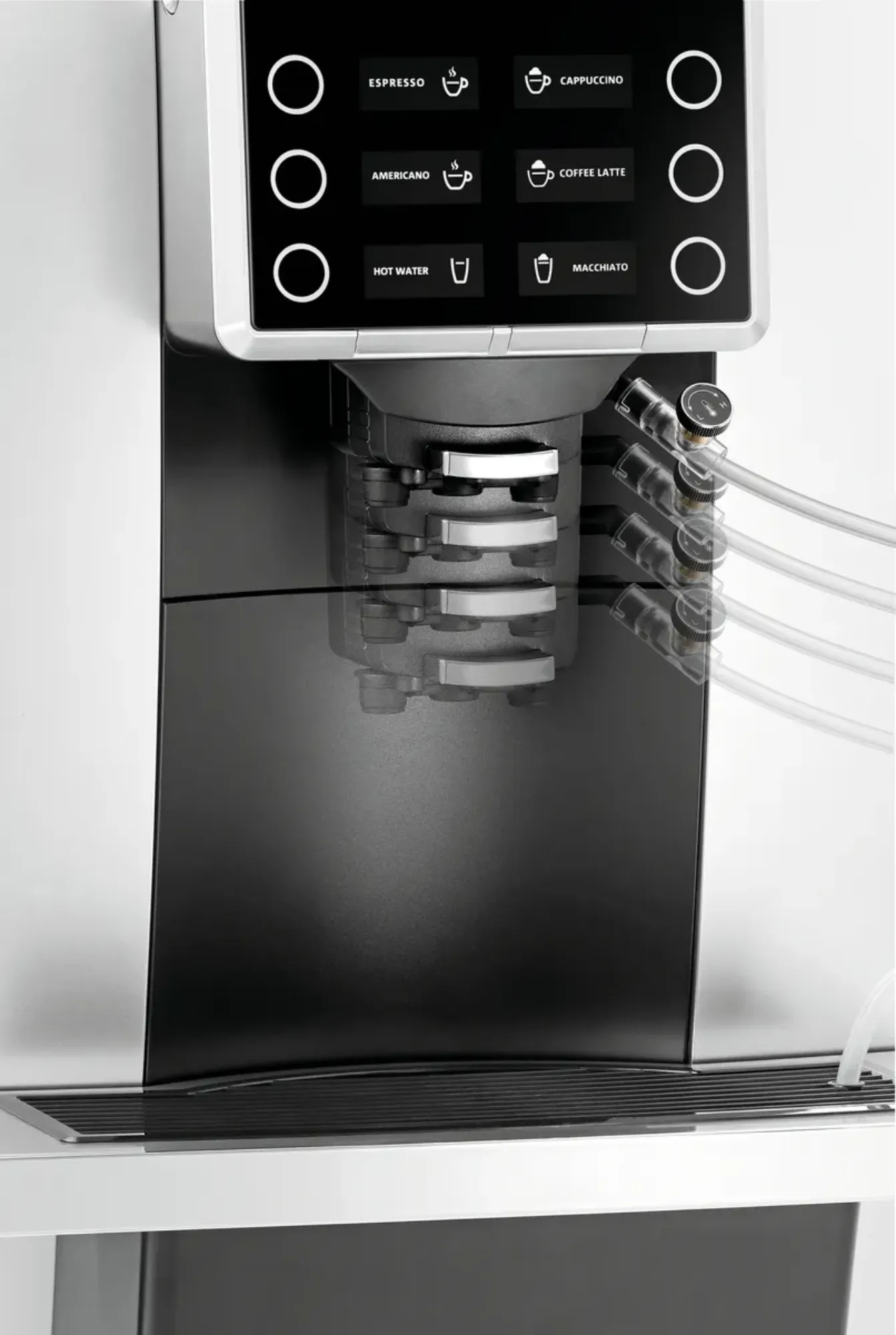

Height-adjustable outlet : 100 - 160 mm

Cleaning program : yes

Residues container capacity : Approx. 35 cups

Residues container dishwasher-suitable : yes

Multi cups : yes

Hot milk function : yes

USB connection : no

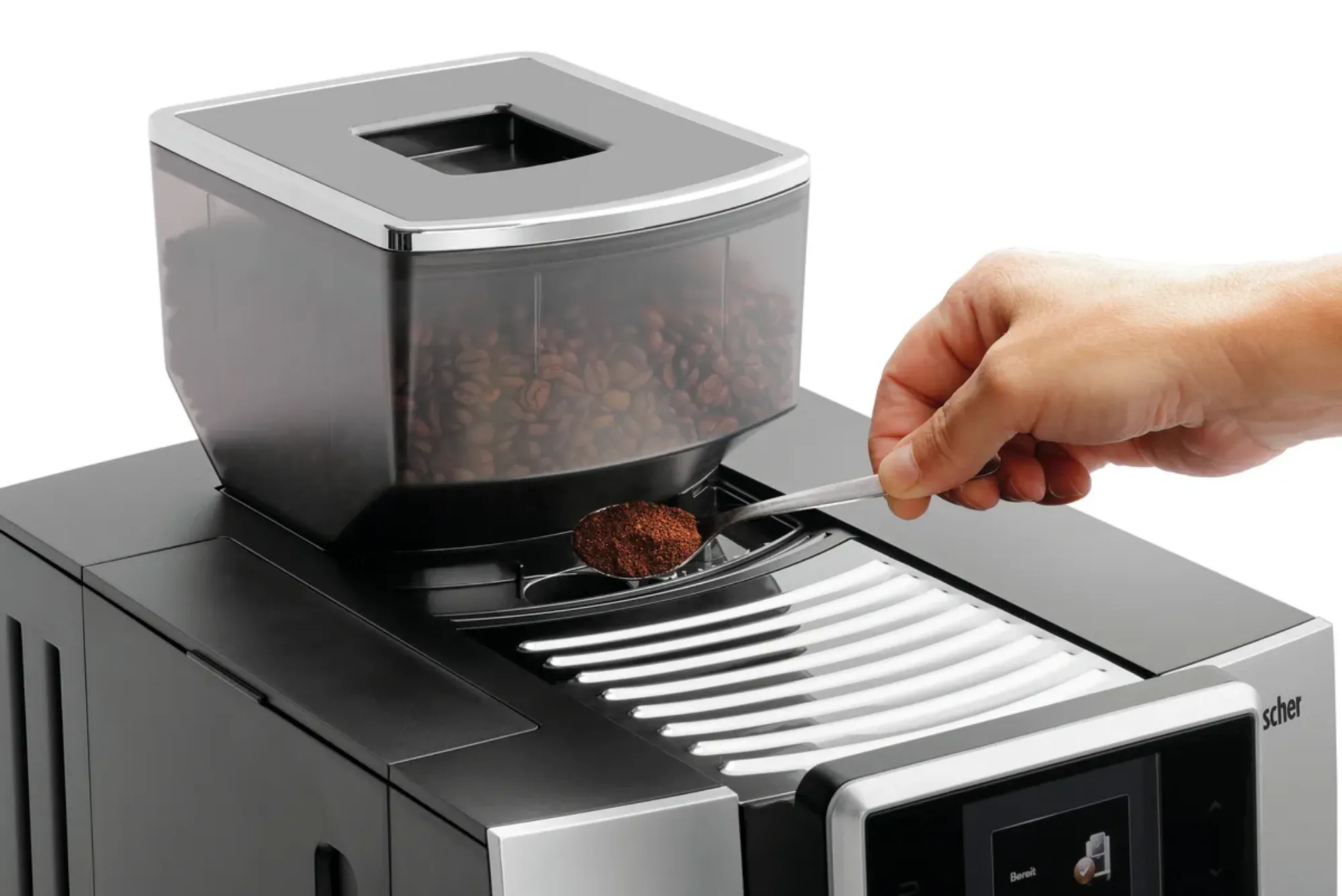

Ground coffee option : Individual cups

Manual 5 - 14 g

Power : 2.7  kW

Voltage : 230 V

Frequency : 50/60 Hz

Control lamp : ON/OFF

ON/OFF switch : yes

Properties : Cup counter (per program and total)

Milk temperature can be regulated via milk hose

Base plate with cutout for automatic ejection of slops (in conjunction with the slops ejector shaft KV1 - available as an option)

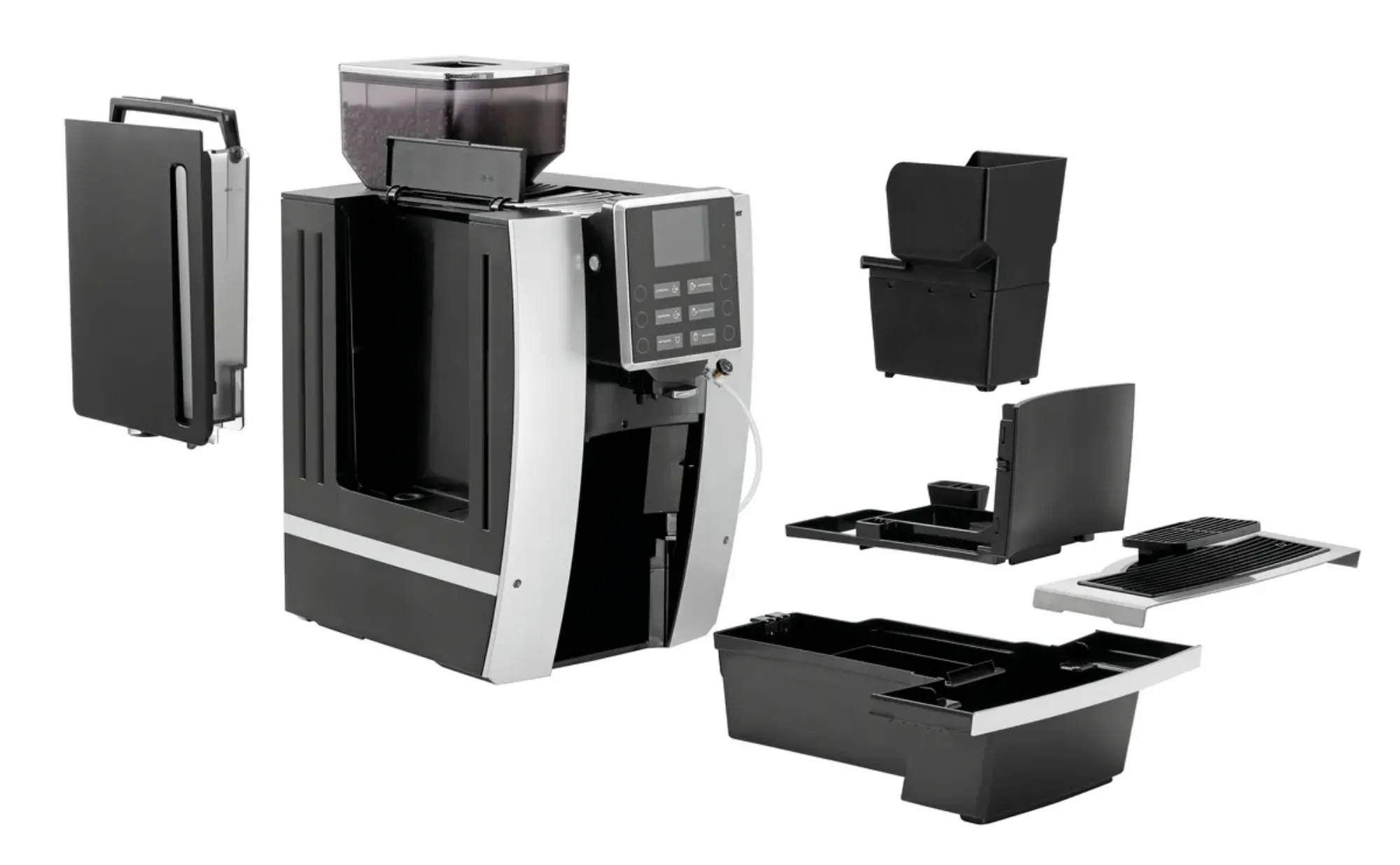

Design : Complete machine

Including : 1 milk hose, 50 cm

1 milk hose with flow controller, 50 cm

1 water supply hose, 150 cm

Material : Plastic

Important information : This coffee machine has wearing parts.

Provided the coffee machine is properly maintained, it can generally be assumed that the following wearing parts will last up to the specified reference quantity of drinks:

Brewing unit: 50,000 poured drinks

Pump, Drainage valve, grinding mechanism and seals: 25,000 poured drinks

Failure of these wearing parts after reaching the respective reference quantity does not mean that the coffee machine is defective.

Width : 305 mm

Depth : 550 mm

Height : 580 mm

Weight : 17.4 kg
