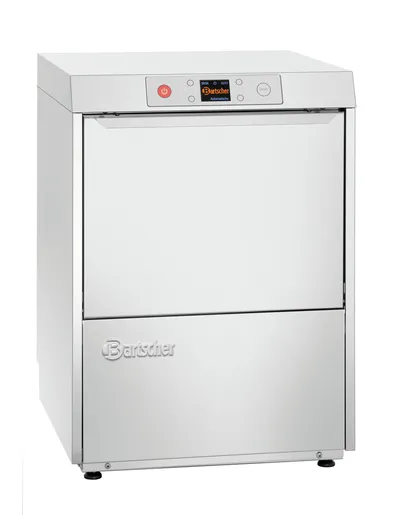

Bartscher Dishwasher Deltamat TF7501ecoLPWR

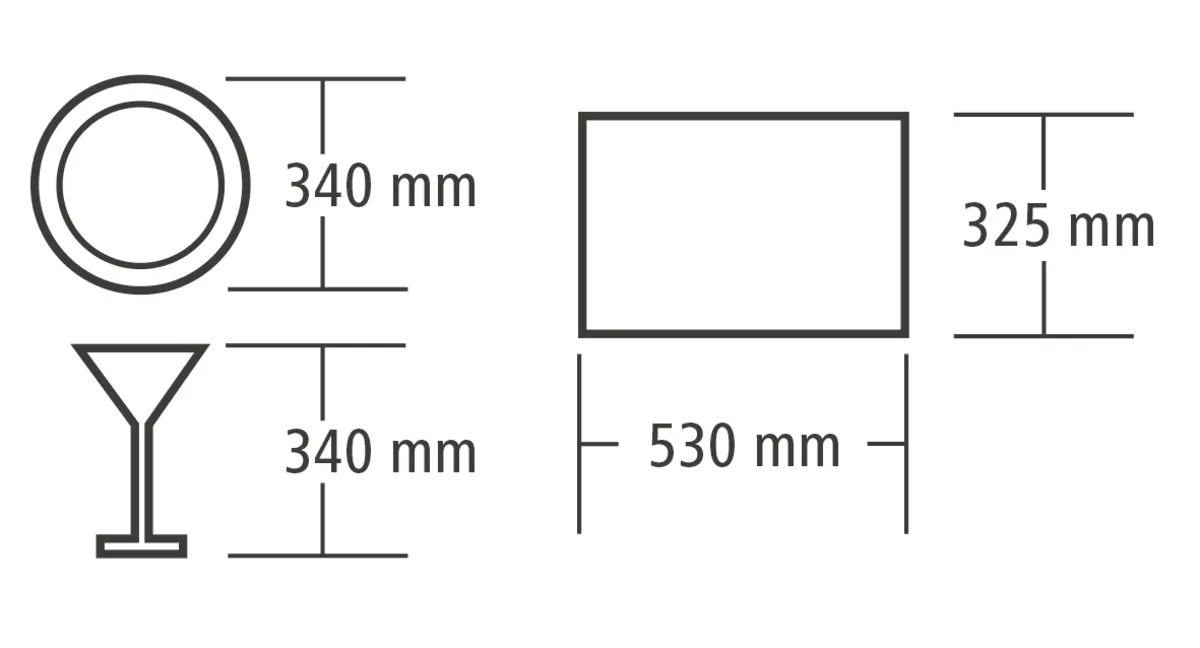

Tray size max. 530 x 325 mm

Plate height max. 340 mm

Door double-walled yes
Can be fitted below the counter yes
Glasses height max. 340 mm

Power 6.65  kW
Voltage 400 V
Frequency 50 Hz
Equipment connection 3 NAC
Boiler heater 6  kW
Tank heater 1.1  kW
Dry-run protection yes
Control lamp ON/OFF
Start/Stop
ON/OFF switch yes
Lye pump yes
Water softener yes
Clear rinsing dosing pump yes
Door contact switch yes
Safety thermostat yes
Cleaning agent dosing pump yes
Basket dimensions 500 x 500 mm
Run-time 60 / 90 / 120 / 180 / 360 / 600 seconds
Output / hour max. 60 baskets
Self-cleaning yes
Cold rinsing no
Double-walled yes
Tank volume 10  litre(s)
Water consumption at 2 bar 3.5 litres / wash cycle
Water pressure 2 - 4 bar
Water supply G 3/4" M
Water outlet Ø 24 mm
Water intake temperature 10 °C to 55 °C

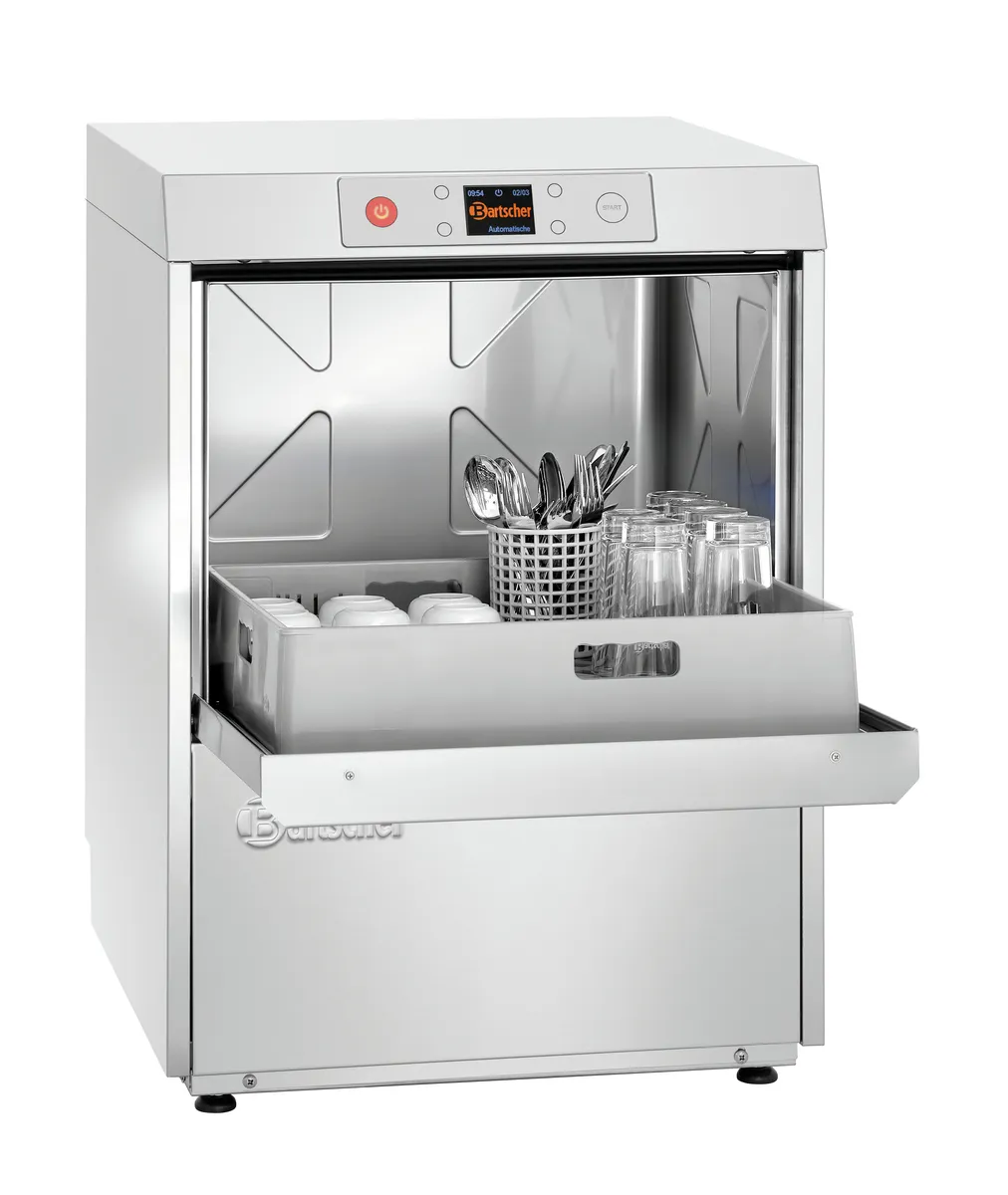

Including 1 universal basket (W 500 x D 500 x H 105 mm)
1 plate basket (W 500 x D 500 x H 105 mm)
1 cutlery basket (Ø 120 mm, H 120 mm)
1 supply hose
1 drainage hose
Properties Thermal disinfection in accordance with DIN 10512, Spec 10534
Thermal stop with energy saving system
Multi-lingual control menu
Self-diagnosis system
Spring-action door
Number of wash programs 7 preset programmes
1 configurable programme

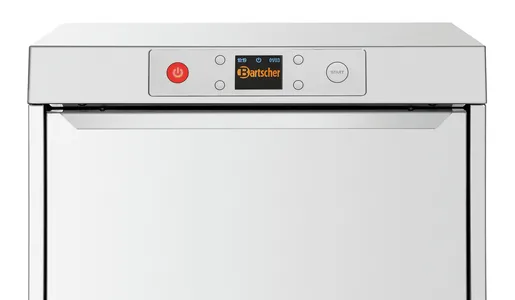

Display 9 languages
Tank temperature and status
Boiler temperature and status
Programme code and name
Colour display, 2.8 inch

Material CNS 18/10
Important information -

Width 600 mm
Depth 645 mm
Height 850 mm
Weight 76.0 kg
