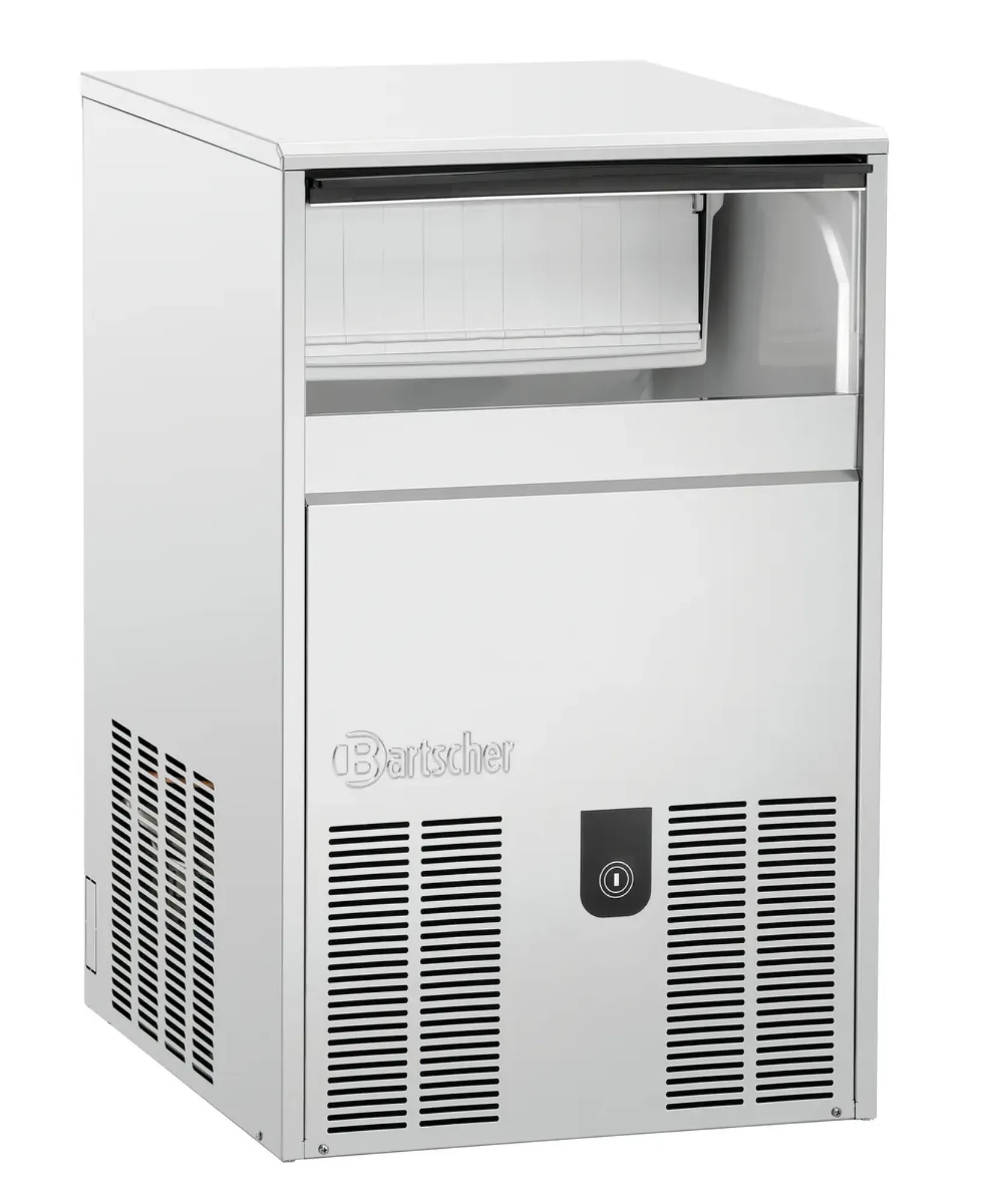

Bartscher Ice-cube maker B 46 Plus

Water outlet : Ø 20 mm

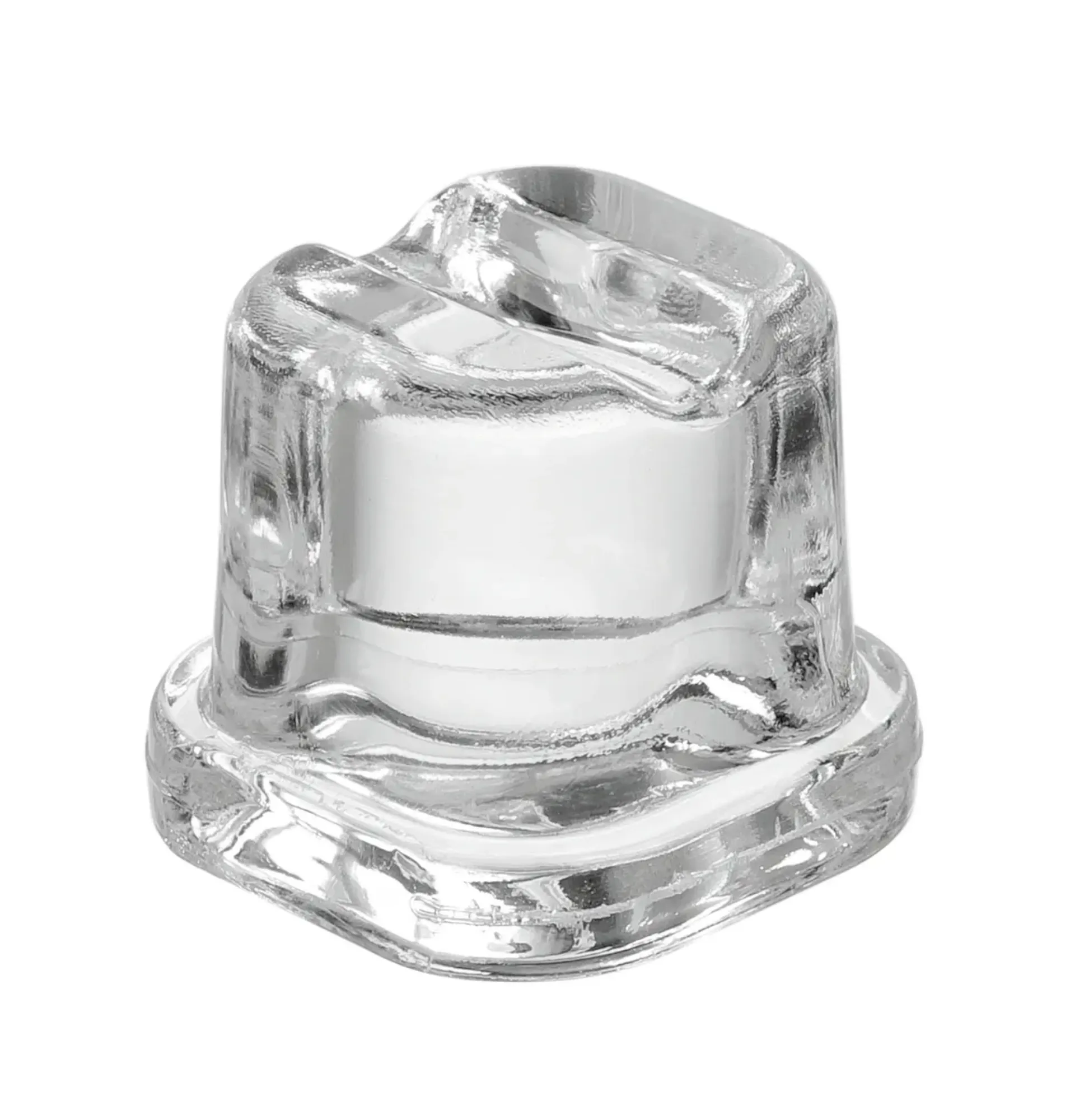

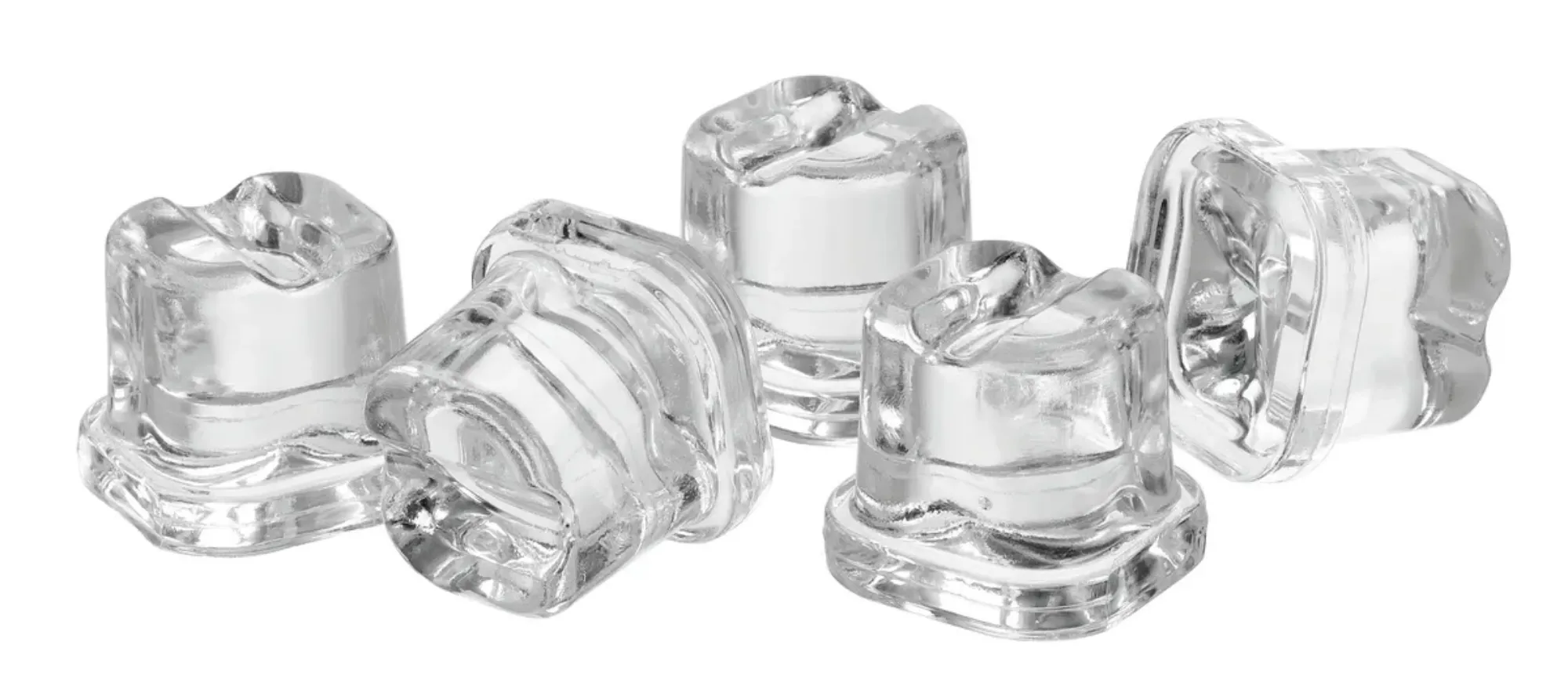

Design ice cube : Tapered form (full taper)

Ice cube size : 35 x 32 mm, 20 g

Production / work step : 28  Ice cubes

Number of ice cube sizes : 1

Power : 0.68  kW

Voltage : 230 V

Frequency : 50 Hz

Properties : Cleaning function

Water consumption / hour: 3.8 litres

Control lamp : ON/OFF

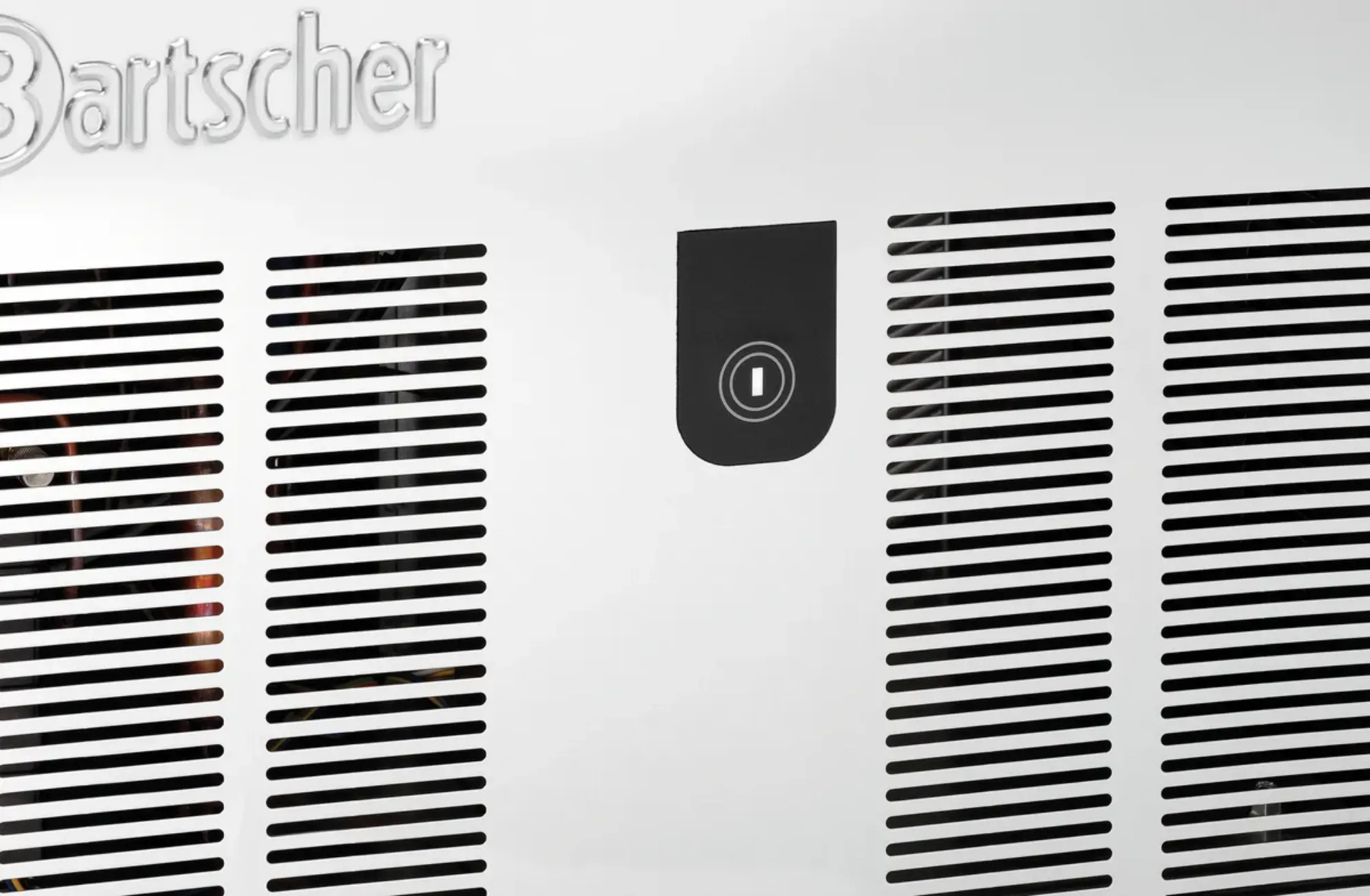

ON/OFF switch : yes

Control unit : Electronic

Can be fitted below the counter : yes

Can be installed : no

Water connection : 3/4"

Climate class : T

Coolant : R290 / 0,080 kg

Cooling : Air cooled

Filling level sensor : yes

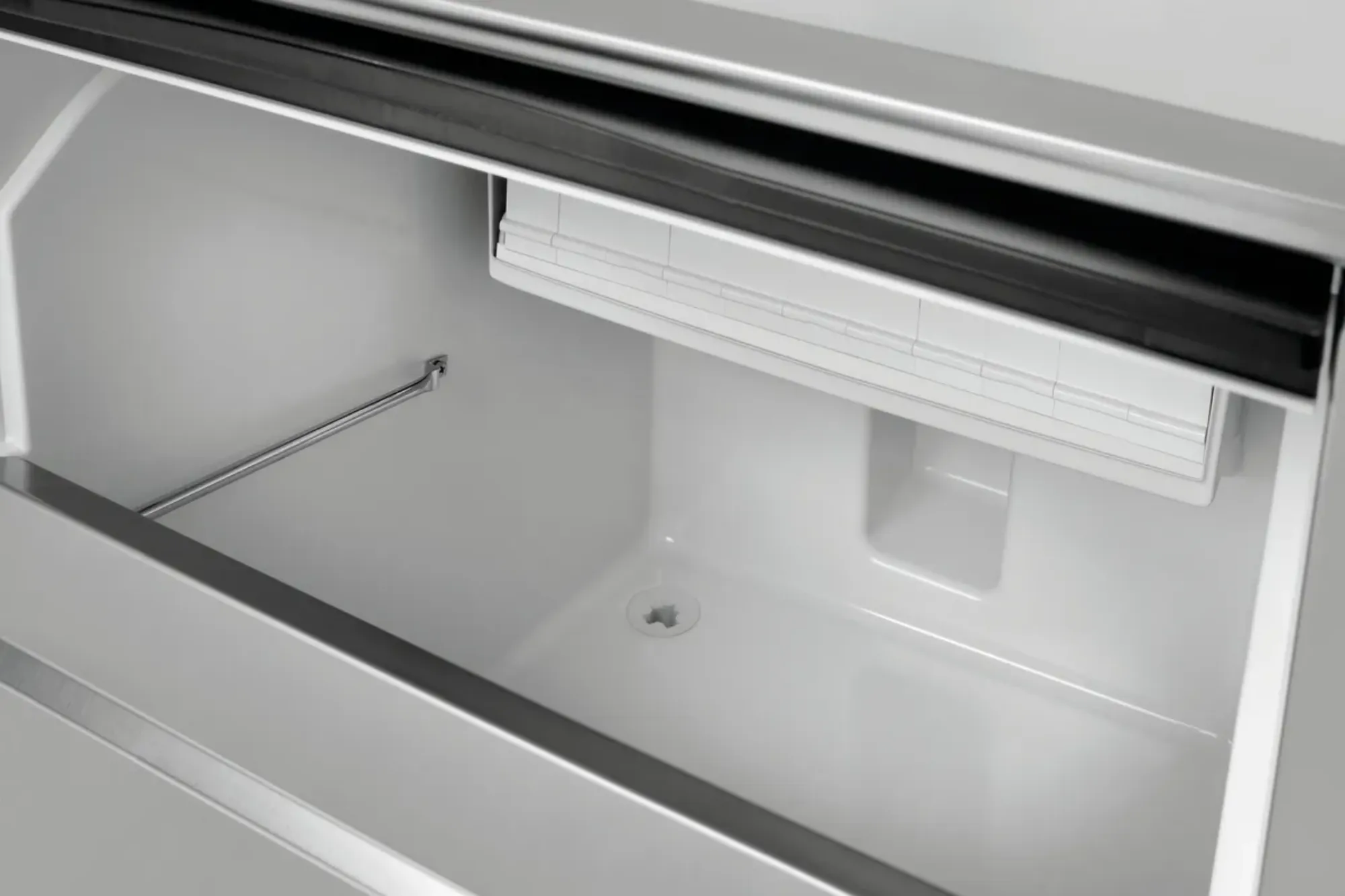

Storage container capacity : 15  kg

Production max. : 46  kg / 24 h

Production by means of : Spray system

Colour : Silver

Including : 1 ice shovel

Material : Stainless steel

Plastic

Steel

Galvanised

Important information : Clearance to all sides at least 15 cm

Width : 500 mm

Depth : 540 mm

Height : 690 mm

Weight : 28.2 kg
