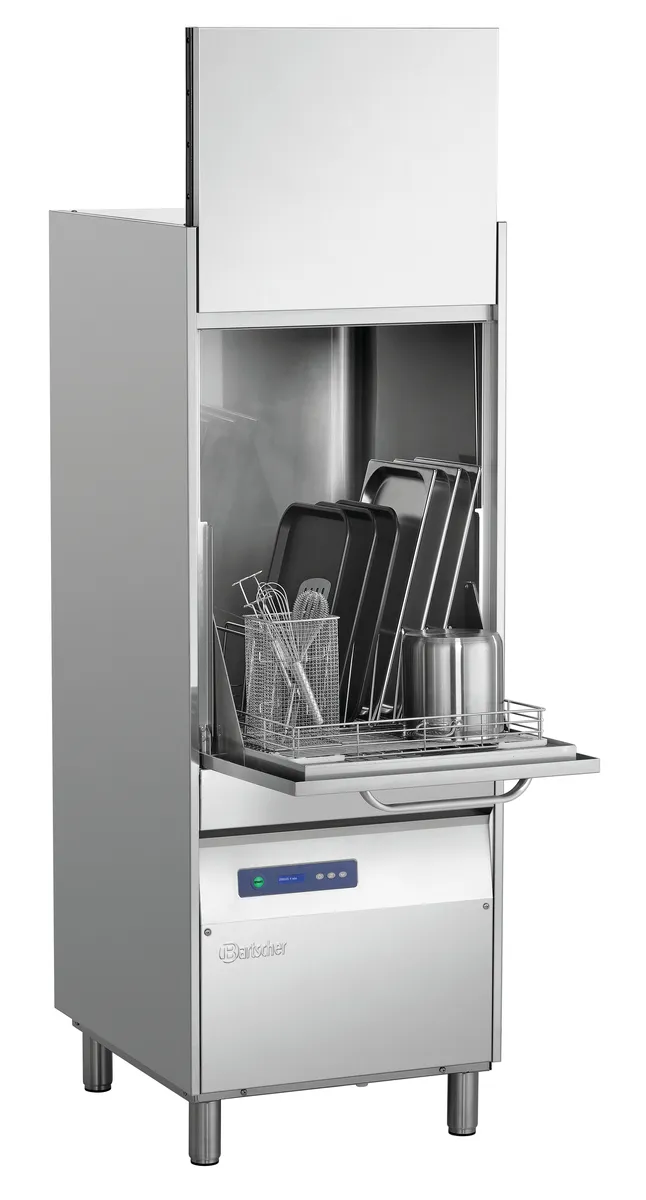

Bartscher Pot dishwasher TS 665 R

Height-adjustable feet : yes

Height-adjustable from : 1890  mm

Height-adjustable to : 1940  mm

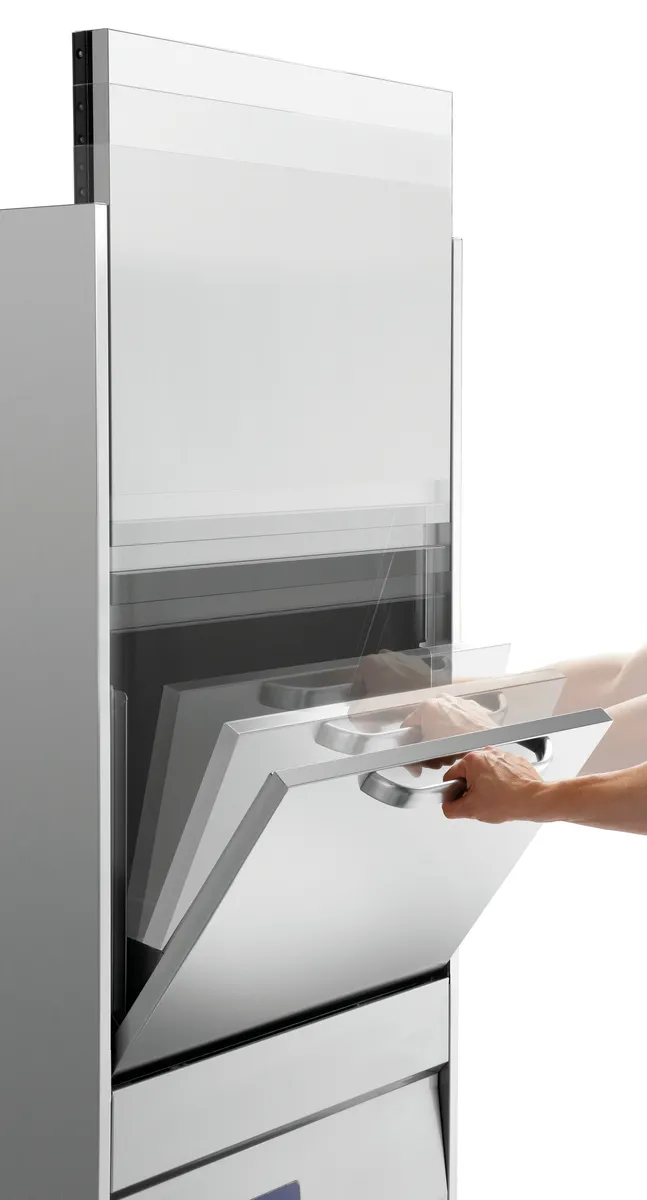

Door double-walled : yes

Can be fitted below the counter : no

Tray size max. : 655 x 805 mm

Height when door is open : 2275 - 2325 mm

Power : 8.18  kW

Voltage : 400 V

Frequency : 50 Hz

Equipment connection : 3 NAC

Boiler heater : 6  kW

Tank heater : 3  kW

Dry-run protection : yes

Control lamp : Heat up

Operational

In operation

ON/OFF switch : yes

Lye pump : no

Water softener : no

Clear rinsing dosing pump : yes

Door contact switch : yes

Safety thermostat : yes

Cleaning agent dosing pump : yes

Basket dimensions : 665 x 550 mm

Run-time : 120 / 240 / 360 / 480 / 600 seconds

Output / hour max. : 30 baskets

Self-cleaning : yes

Cold rinsing : no

Double-walled : yes

Tank volume : 50  litre(s)

Water consumption at 2 bar : 4,2 litres / wash cycle

Water pressure : 2 - 4 bar

Water supply : G 3/4“

Water outlet : Ø 32 mm

Water intake temperature : 55 °C

Including : 1 universal basket

1 tray basket

1 cutlery holder

1 rinsing grille

Properties : Electronic thermo-stop

Plus-System (pressure boost pump, break tank, pressure-free boiler)

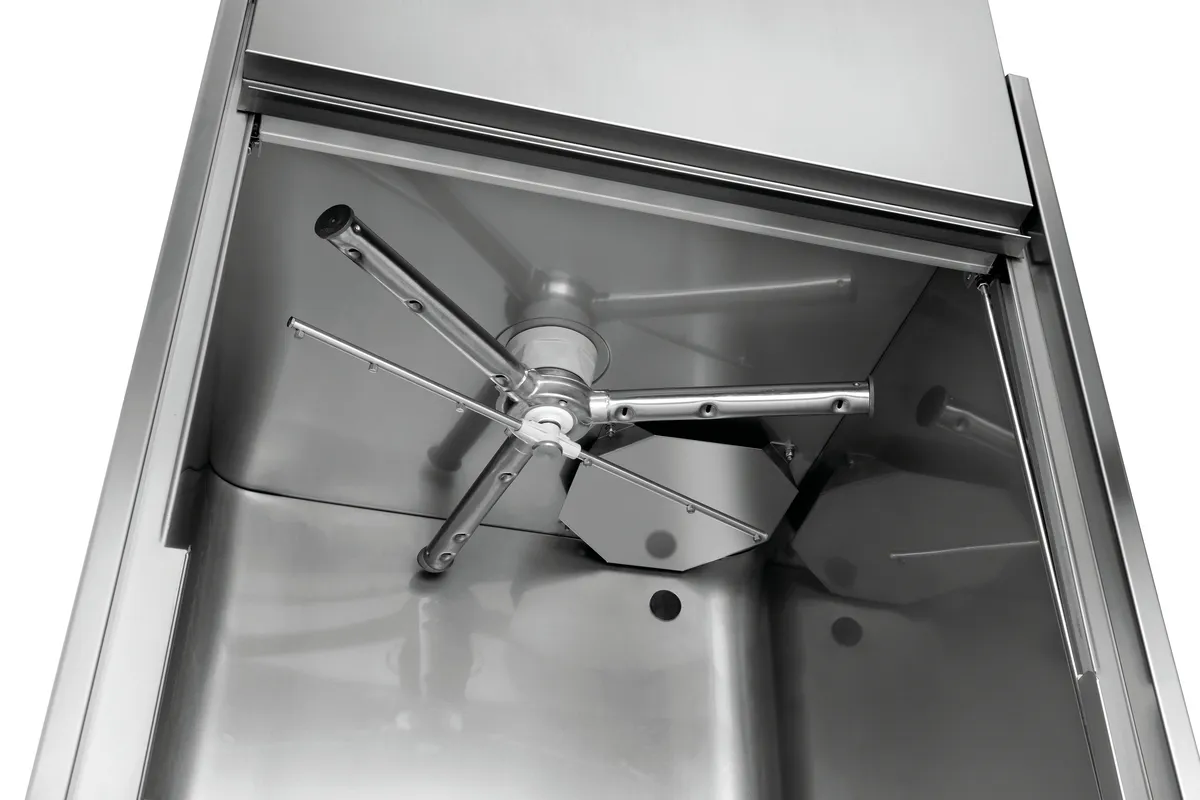

2 rinsing arms, each with 1 rinsing pump

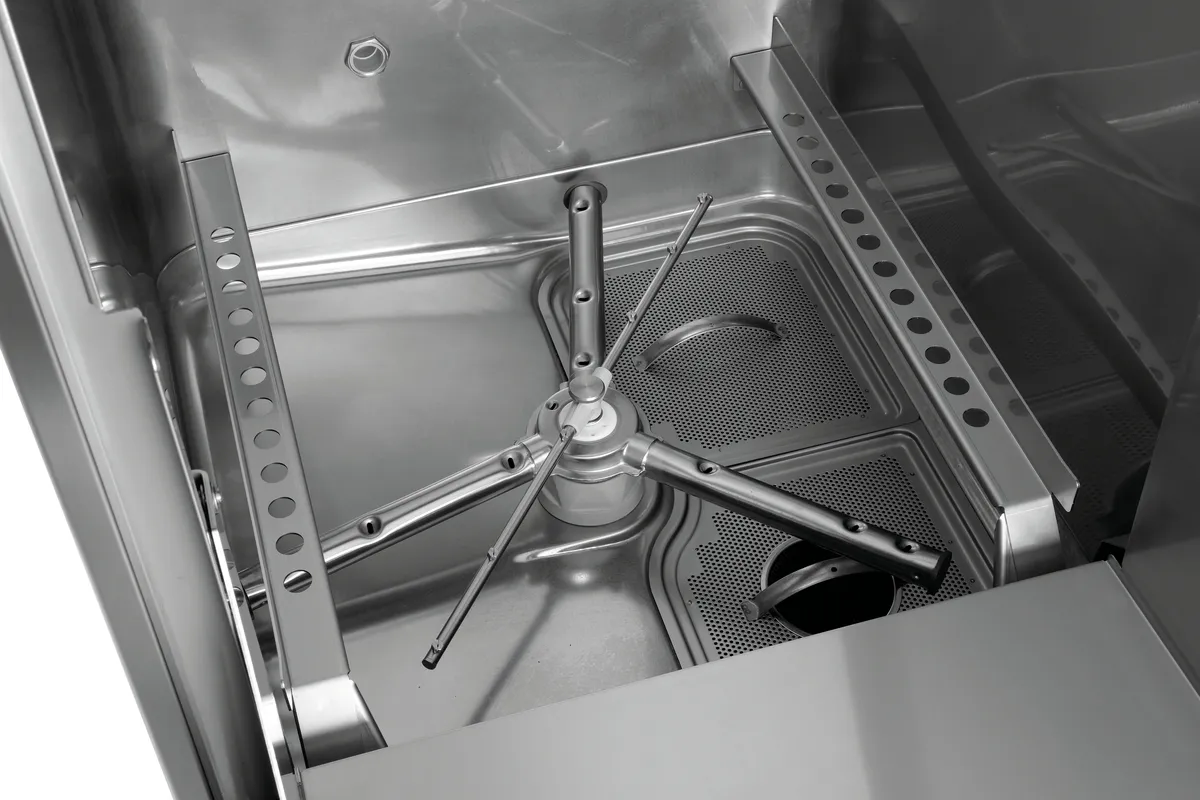

Twin strainer (waste collector and pump strainer removable)

Washing tub deep-drawn, with levels

Easy removal of the filter

Vertical, self-cleaning pump strainer

Self-diagnosis system

Stand-by function

Multicoloured start button

Multi-lingual control menu

Number of wash programs : 5

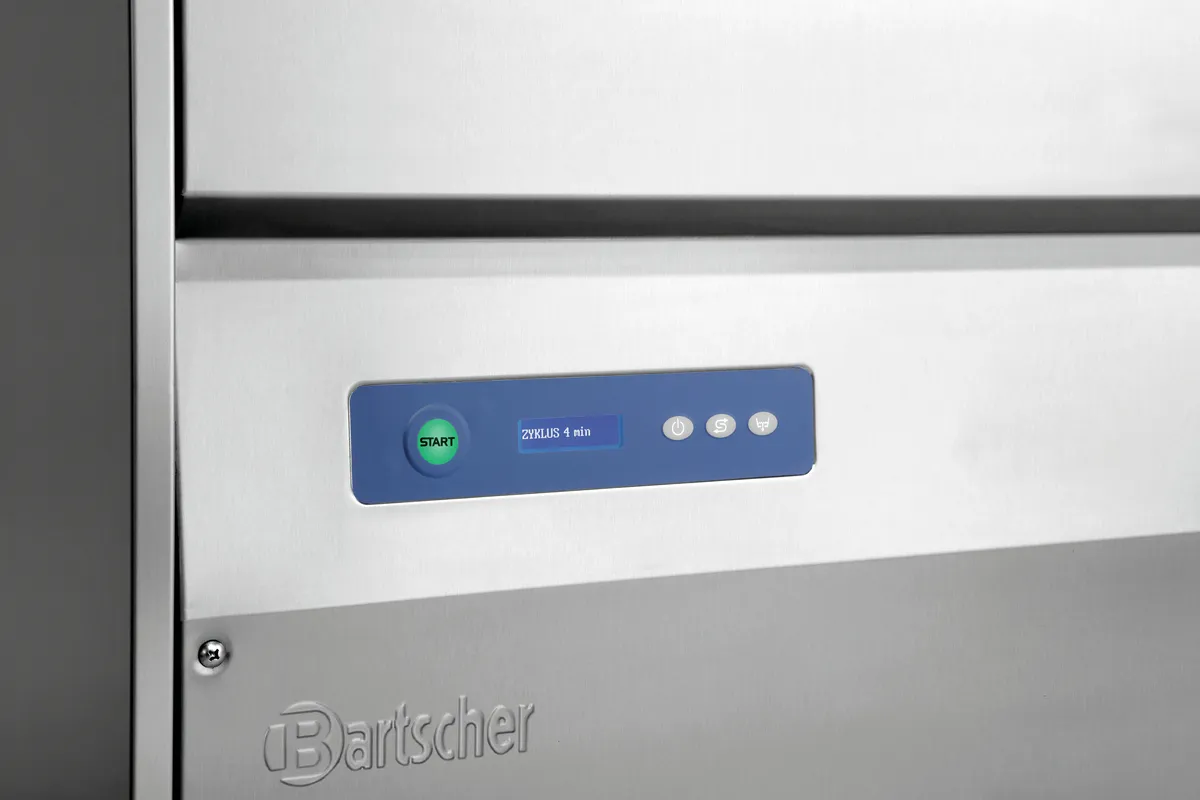

Display : Text display

Boiler temperature and status

Tank temperature and status

Material : Stainless steel

Important information : -

Width : 690 mm

Depth : 850 mm

Height : 1755 mm

Weight : 174.2 kg
