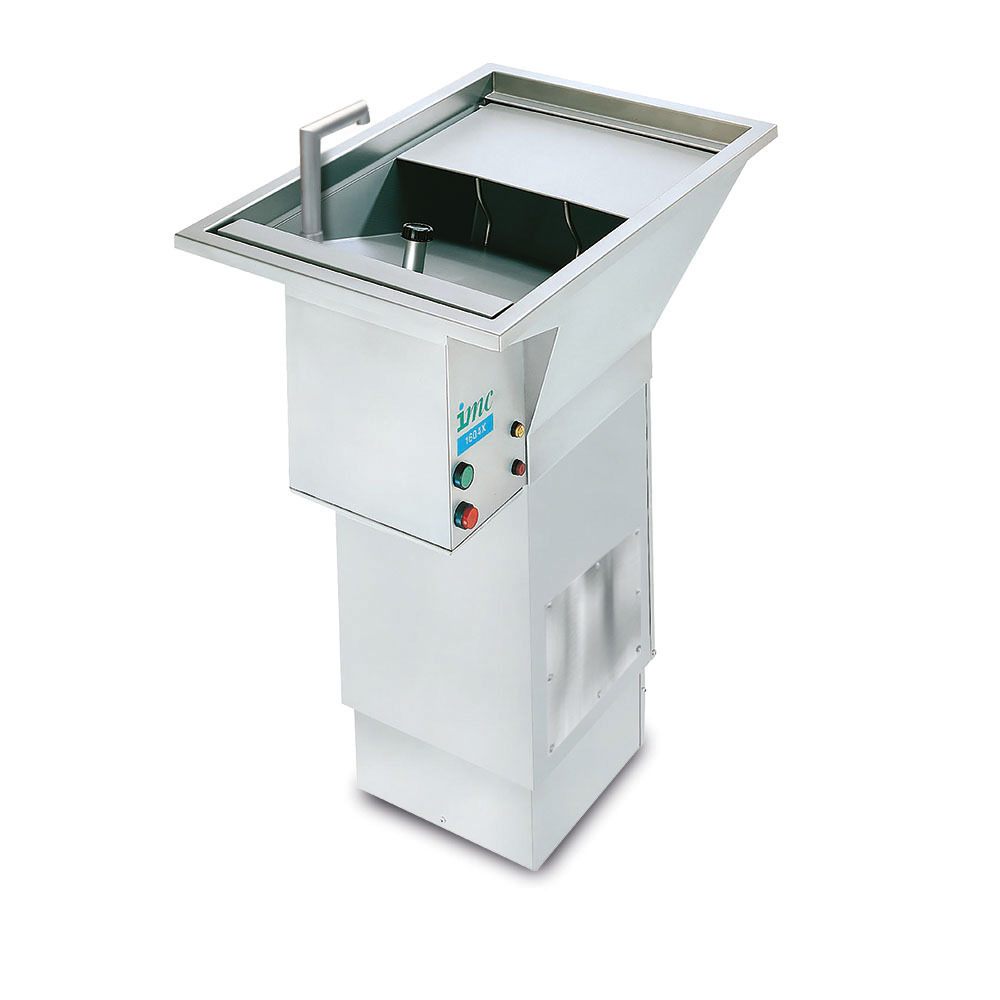

IMC Vulture 1604X Floor-mounted Food Waste Disposer

Summary

Brand IMC

Range Vulture

Series 04X Series

Power Type Electric

Unit Type Floor-mounted or welded into tabling [with optiona

Available in UK Only No

UK Warranty 2 Years Parts and Labour Warranty

Export Warranty Contact your local dealer

Mounting Floor-mounted

GTIN 5056105199175

Power and Performance

Total Power kW 4

HP 5.4

IP Rating IP55

Key Specifications

Operator Safety Interlocks

Airbreak Yes

Capacity

Type of Waste Tough waste

Covers Per Sitting 1850

Capacity Kg per Hour 900

Weights and Dimensions

Unit Height (External) mm 1,014

Unit Width (External) mm 514

Unit Depth (External) mm 740

Net Weight Kg 85.5

Supply Connections

Requires Installation Yes

Requires Electrical Supply Yes

UK 3 Pin Plug No

Requires Hardwiring Yes

Electrical Supply Rating Watts 4000

Three Phase Amps 8.7

Three Phase Voltage 400

Water Supplied From Mains or storage cistern

Water Connection Pressure Bar 0.18

Drain Connection 2" BSP threaded flange, connected to 54mm piping;

Water Connection 22mm

Download Tech Spec
