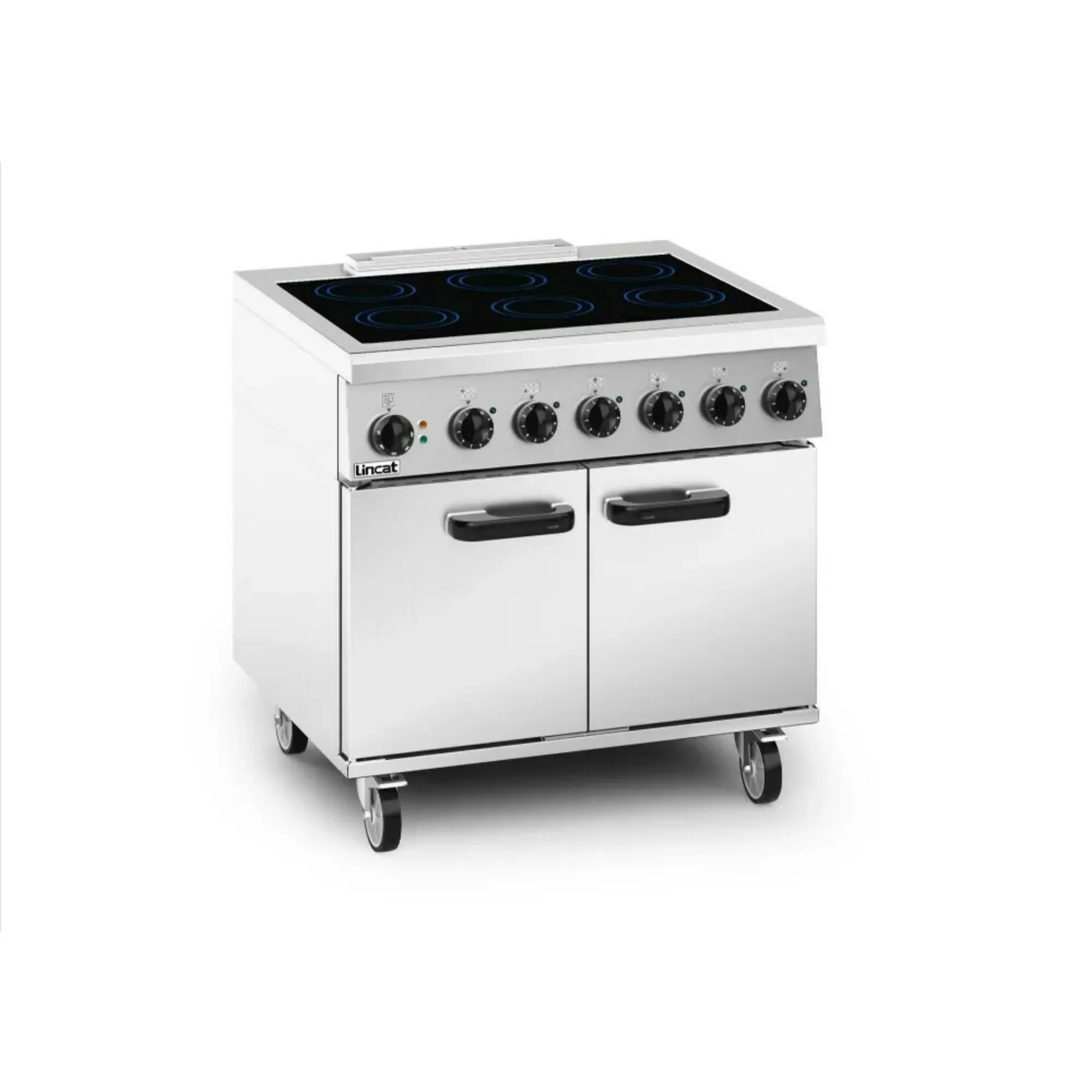

Lincat Phoenix PHER01 Electric Free-standing Induction Oven Range Single Phase

Summary

Brand : Lincat

Range : Phoenix

Power Type : Electric

Unit Type : Free-standing

Available in UK Only : No

UK Warranty : 2 Years Parts and Labour Warranty

Export Warranty : Contact your local dealer

GTIN : 5056105116417

Power and Performance

Total Power kW : 13.0

Temperature Range °C : 50-250

IP Rating : IP24

Cooking Area (Width x Depth) mm : 190 dia. x 6

Temperature Control : Mechanical

Rating per Hob kW : 1.5

Oven Rating kW : 4.0

Key Specifications

Number of Shelves included : 3

Number of Shelf Positions : 5

Number of Hobs : 6

Shape of Hob : Round

Capacity

Gastronorm Capacity : 6 x GN1/1

Weights and Dimensions

Unit Height (External) mm : 923

Unit Width (External) mm : 900

Unit Depth (External) mm : 817

Height (Internal) mm : 410

Width (Internal) mm : 725

Depth (Internal) mm : 512

Shelf Dimensions Width mm : 706

Shelf Dimensions Depth mm : 512

Hob Dimensions mm : 190

Net Weight Kg : 125

Supply Connections

Requires Installation : Yes

Requires Electrical Supply : Yes

UK 3 Pin Plug : No

Requires Hardwiring : Yes

Electrical Supply Rating Watts : 13,000

Single Phase Amps : 56.5 [1 supp.]; 30.4/26.1 [2 supp.]

Single Phase Voltage : 230

Download Tech Spec
