UPster U500 AktivClean Frontloading Dishwasher

UPster U500 AktivClean Frontloading Dishwasher

UPster Undercounter dishwashers

Prices from

€7303.24 +VAT

€8,982.99 inc vat

Apply For Finance

Buy Now

Earliest Possible Delivery is 14-02-2025 (42 Day)

Product Range

Info

Technical Details

Downloads

Videos

Info

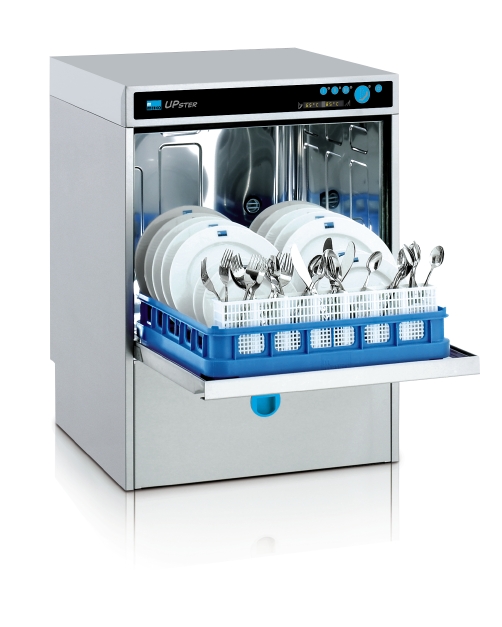

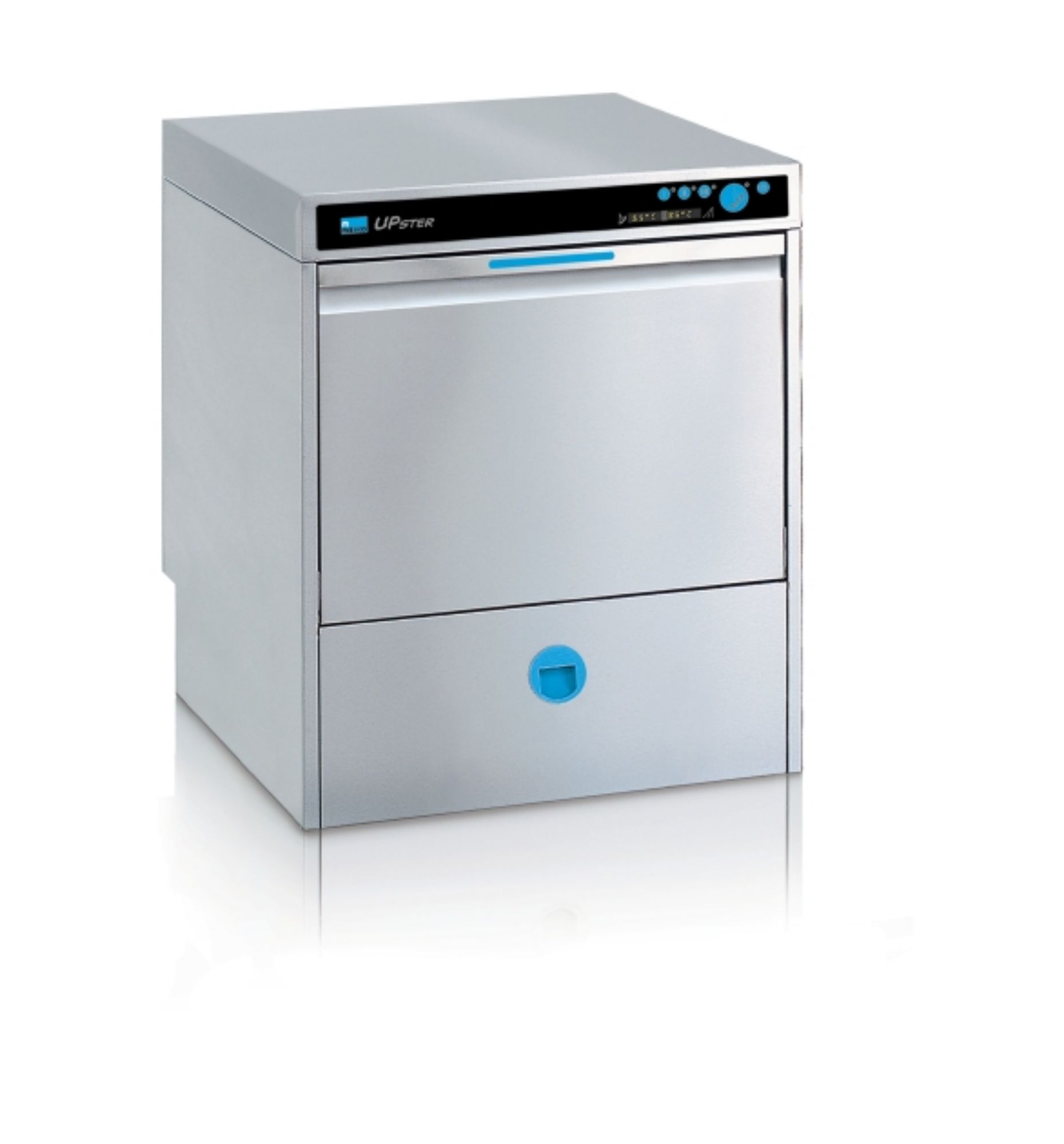

UPster U500 AktivClean Frontloading Dishwasher

Product Code: U500 AktivClean Dishwasher

SID: 111

Size (H x W x D)::
820/850 x 600 x 665

In Stock

RRP €9707.20

€7303.24 +VAT

Back Order Now

add

Technical Details

UPster U500 AktivClean Frontloading Dishwasher

Up to 720 dinner plates per hour

(Dependent upon electrical and water temperature connections)

Dimensions: 600 x 665 x 820/850 mm

Passing height of 420mm

Basket size 500mm x 500mm

Electrics: 230/50/1phase or 400/50/3phase

Capacity : Up to 40 racks per hour

50ºC hot fill or 10ºC cold fill 1 phase : 5.0 kW

50ºC hot fill or 10ºC cold fill 3 phase : 6.9 kW

Downloads

UPster U500 AktivClean Frontloading Dishwasher

Videos

UPster U500 AktivClean Frontloading Dishwasher

Description

UPster U500 AktivClean frontloading dishwashing machine with integral water softener. Machine constructed throughout in type 304 (1.4301) high grade stainless steel and with full external stainless steel cladding. Additional features include pressed tank with large radius coved corners, double wall construction for excellent sound and heat insulation, and sloped internal upper wash tank surfaces to prevent dripping onto clean items.

Product Features

90/120/240 second programme cycle

Water connection 1 x 22 mm Â¾â€BSP

Water supply pressure 1-5 bar

Suitable for a softened hot or cold water supply

1 phase or 3 phase connection can be selected at time of machine installation

Minimum flow rate 5lt/min

Tank fill capacity 11lt

Final rinse consumption 2.6lt/basket

Waste connection 1 x 40mm Ã˜ standing waste

Wash pump motor rating of 0.55 kW

Detergent and rinse aid dosing pump with containers

Hose and cable connection kit

Drain pump for high level waste outlet

Soft start feature on wash pump

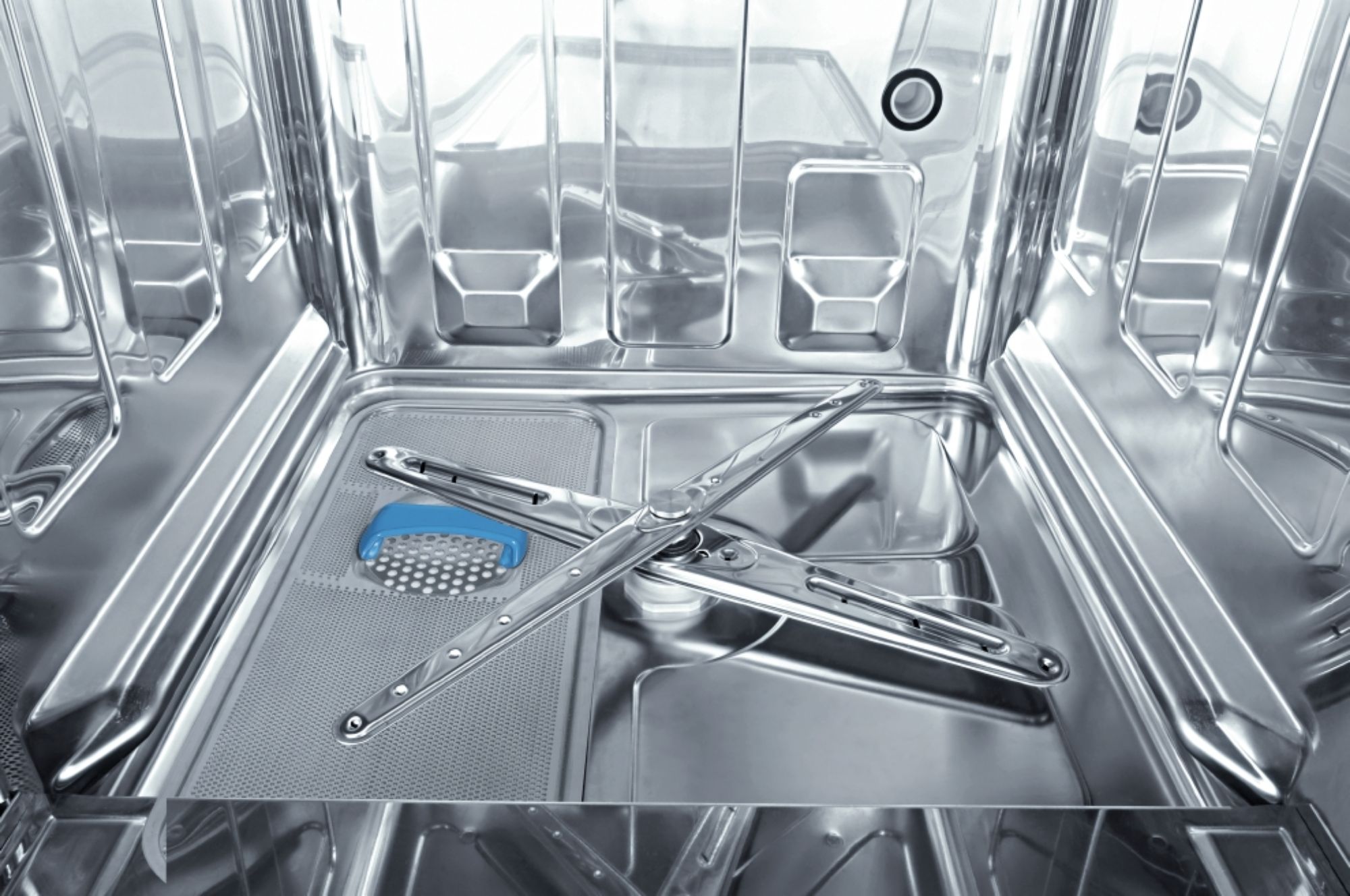

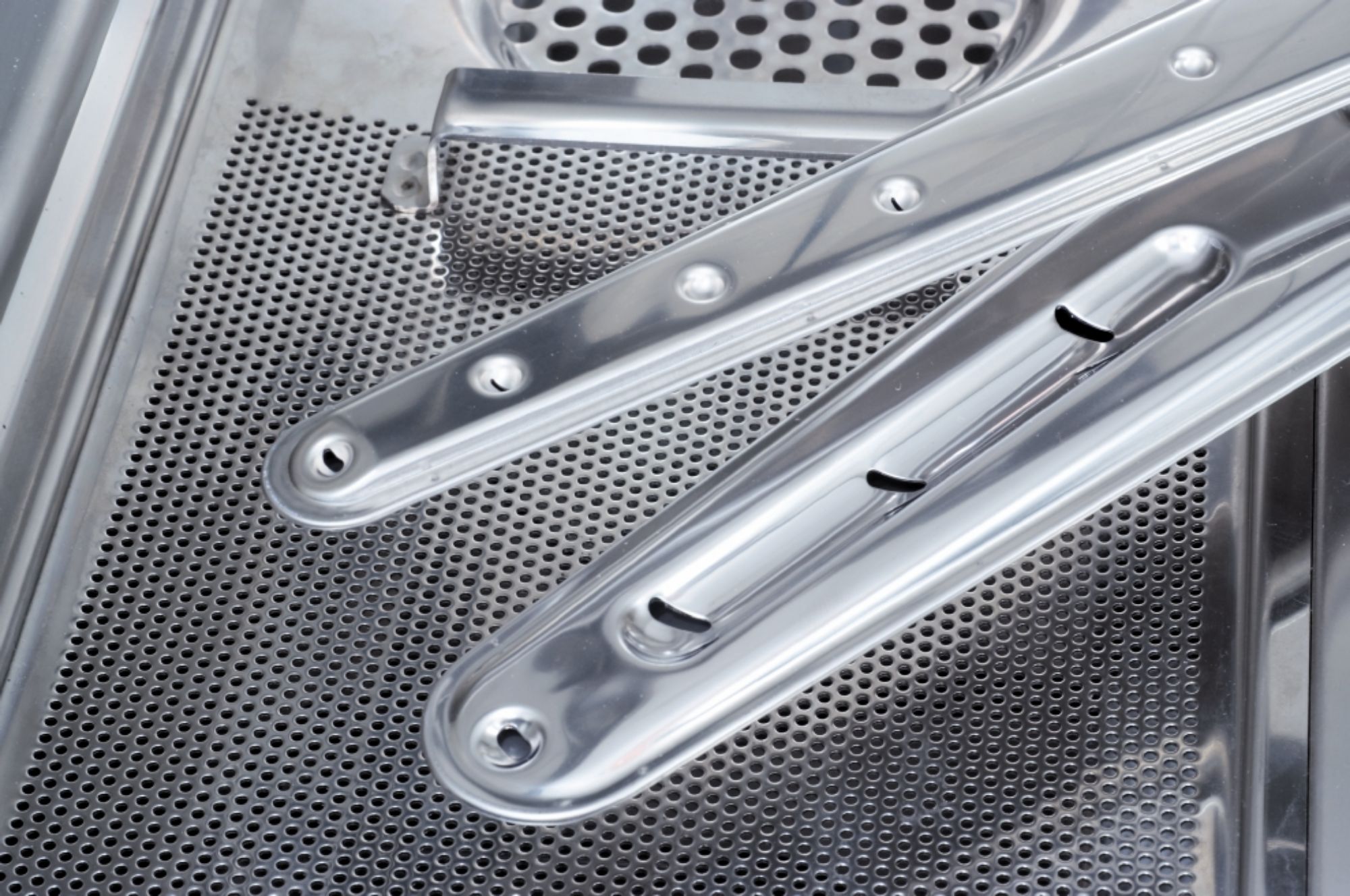

Rotating upper and lower rinse and wash arms

Touchpad controls (no switches)

MIKE 2 infrared interface for exchange of data services

Integral class â€˜AAâ€™ air gap with rinse booster pump

Self-cleaning cycle after drain down

2 x finger type plate racks

1 x open type cup/bowl rack

2 x eight compartment cutlery racks
