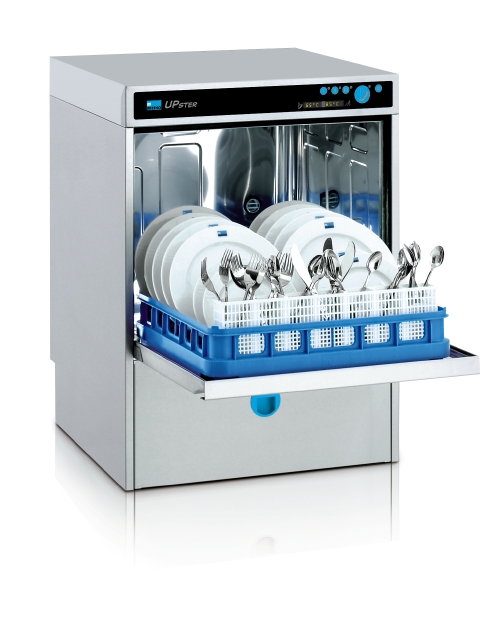

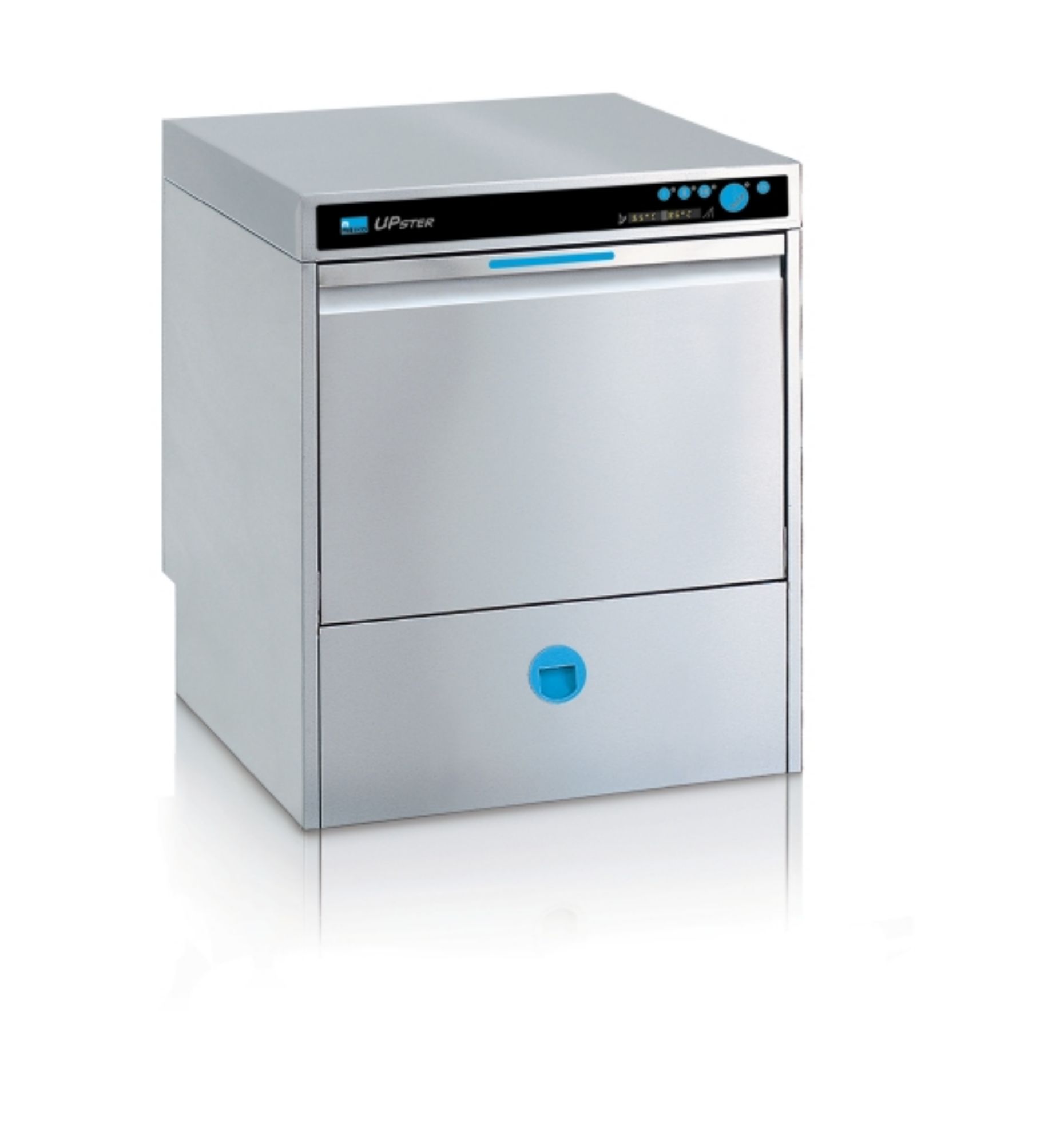

UPster U500 Front Loading Glasswasher

Product Code: U500 GLASSWASHER

SID: 111

Size (H x W x D)::
820 x 600 x 600

In Stock

RRP €8924.64

€6575.89 +VAT

Back Order Now

add

Technical Details

UPster U500 Front Loading Glasswasher

Up to 720 dinner plates per hour

(Dependent upon electrical and water temperature connections)

Dimensions: 600 x 600 x 820mm

Passing height of 420mm

Basket size 500mm x 500mm

Electrics: 230/50/1phase or 400/50/3phase

Capacity : 40 racks per hour

Hot fill only 13amp : 2.71 kW

50ºC hot fill or 10ºC cold fill 1 phase : 4.71 kW

50ºC hot fill or 10ºC cold fill 3 phase : 6.71 kW

Product listed in WRAS water fittings and materials directory. Certificate No. 1604078. Suitable for backflow protection against fluid category 5.

Downloads

UPster U500 Front Loading Glasswasher

Videos

UPster U500 Front Loading Glasswasher

Description

The UPster U500 Front Loading Glasswasher is a highly efficient and cost-effective commercial dishwasher. It has a 500mm basket to fit a large number of glasses, and a time-saving two-minute cycle which ensures outstanding results. This machine is an ideal choice for pubs, restaurants, and bars, as it is simple to use, energy efficient, and reliable.

Product Features

90/120/240 second programme cycle

Water connection 1 x 22 mm ¾”BSP

Suitable for a softened hot or cold water supply

Water supply pressure 1-5 bar

Minimum flow rate 5lt/min

Tank fill capacity 11lt

Final rinse consumption 2.6lt/basket

Waste connection 1 x 40mm Ø standing waste

Wash pump motor rating of 0.55 kW

Detergent and rinse aid dosing pump with containers

Hose and cable connection kit

Drain pump for high level waste outlet

Soft start feature on wash pump

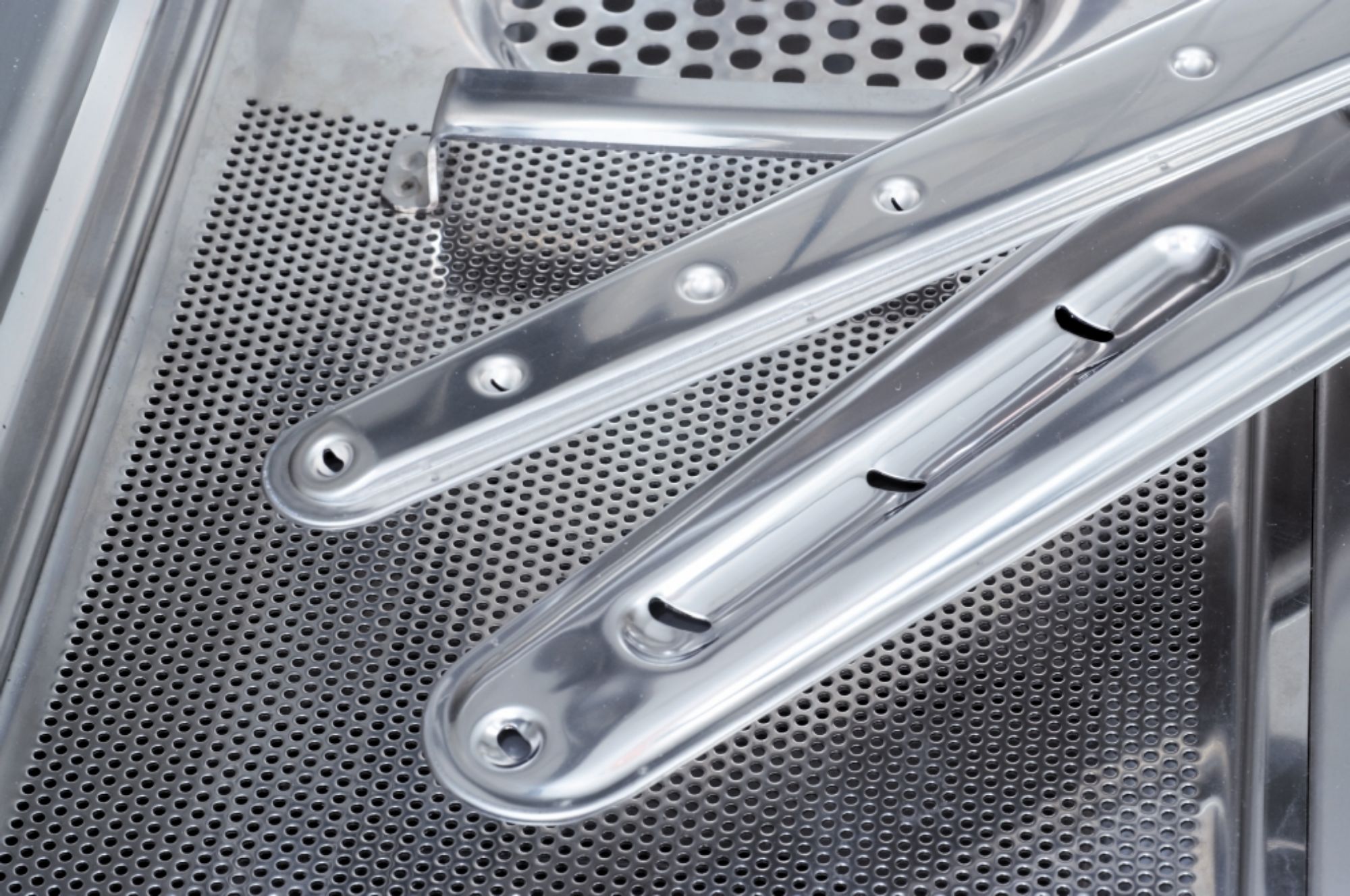

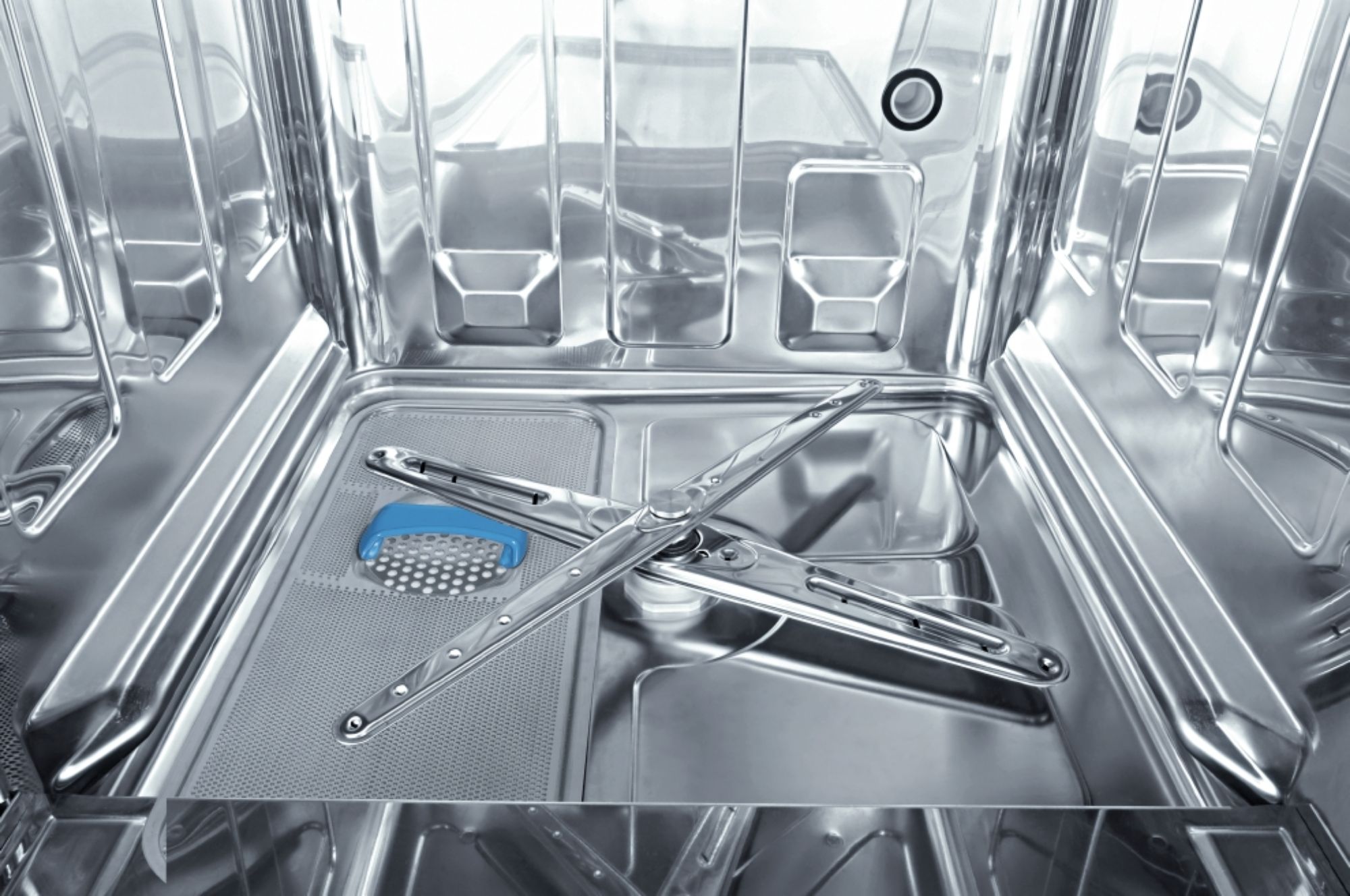

Rotating upper and lower rinse and wash arms

Touchpad controls (no switches)

MIKE 2 infrared interface for exchange of data services

Integral class ‘AA’ air gap with rinse booster pump

Self-cleaning cycle after drain down

Two (2) finger type plate racks

One (1) open type cup/bowl rack

Two (2) eight compartment cutlery racks
